▎Product Introduction ：

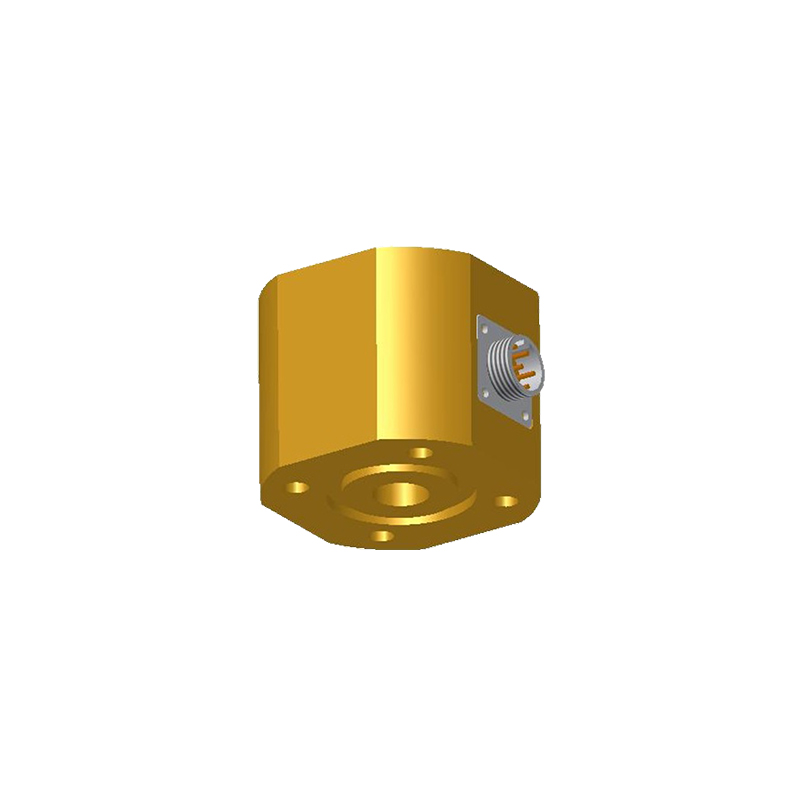

DG6001 Fuel Cell Gas Detection Module integrates gas separation and detection into one unit, enabling real-time continuous monitoring of hydrogen concentration in liquids. As a core component for online equipment monitoring, it significantly reduces both manufacturing and operational costs of gas monitoring systems.
▎Key Features ：
1.Industrial-grade fuel cell gas sensor with multiple domestic and international patented technologies and proprietary core technologies.
2.Integrates gas separation and detection into one unit, featuring high integration and easy installation.
3.Employs core technologies to address sensor poisoning and electrolyte leakage issues.
4.Precise internal environmental control ensures immunity to external environmental variations, making it suitable for hydrogen detection in various extreme and harsh conditions.
5.Sensor design life exceeds 10 years.
6.Low gas consumption, achieving accurate hydrogen measurement with just 1 mL of gas sample.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Target Gases |
Hydrogen,Carbon Monoxide,Ethylene,Acetylene (mixed concentration) |
Detection Principle |
Micro fuel cell |
Range |
(0~2000) μL/L |
Overload |
5000μL/L |
Resolution |
1μL/L |
Detection Accuracy |
±10% or ±20μL/L (whichever is greater) |
Response Time（T₈₀） |
＜10min |
Long-term Drift |
2%/year |
Output Signal |
Linear |
Repeatability |
1% of signal value |
Operating Temperature |
(-40~80) ℃ |
Storage Temperature |
(-20~40) ℃ |
Operating Humidity |
(5~95) %RH (non-condensing) |
Operating Pressure |
(50~150) kPa |
Service Life |
＞10 years |
Shelf Life |
5 years |
