▎Product Introduction ：

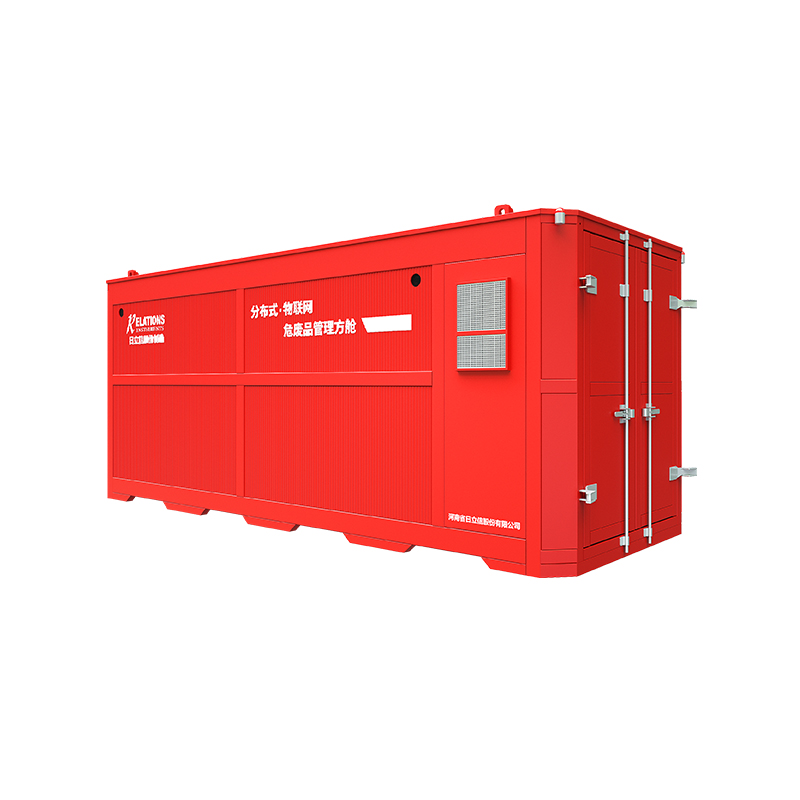

The Distributed Hazardous Waste Temporary Storage Shelter (Waste Lead-Acid Batteries) is based on the product concept of hazardous chemical shelters. In accordance with the State Grid Corporation of China Environmental Sound Disposal Supervision and Management Measures for Power Grid Waste Materials, it implements the requirements of the State Grid Corporation of China 2020 Science, Technology, and Environmental Protection Work Priorities: 'Standardize power grid waste management and strengthen the construction of temporary storage facilities.' Battery placement management is achieved through a battery tray system. The trays are designed according to the characteristics of waste lead-acid batteries—resistant to breakage and deformation, with materials that effectively prevent leakage, diffusion, and are acid-corrosion resistant.
▎Key Features ：
1.Solve the problem of manual handling on-site and achieve automated storage and retrieval.
2.Establish unique identification for hazardous waste and emergency supplies to standardize disposal and enable intelligent management.
3.Features include intelligent weighing, barcode printing, BeiDou positioning, video monitoring, environmental monitoring and alarm, automatic storage, and automatic inventory.
4.Equipped with BeiDou positioning and 5G data transmission technology, enabling distributed and refined IoT-based management of the shelter.
5.Capable of data exchange with third-party management systems (e.g., environmental protection, materials).
6.Configured with a backup tool area, including environmental emergency supplies and battery transfer containers.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Storage Capacity |
Maximum 216 units |
Battery Dimensions |
124mmx181mmx346mm (LxWxH) (Other sizes acceptable) |
Casing Weight |
Approx. 5,000 kg (batteries excluded) |
Communication |
5G |
Operation Interface |
12.1' touchscreen |
Power Supply |
220V 50Hz |
Dimensions |
6m×2.4m×2.64m (L×W×H) |
