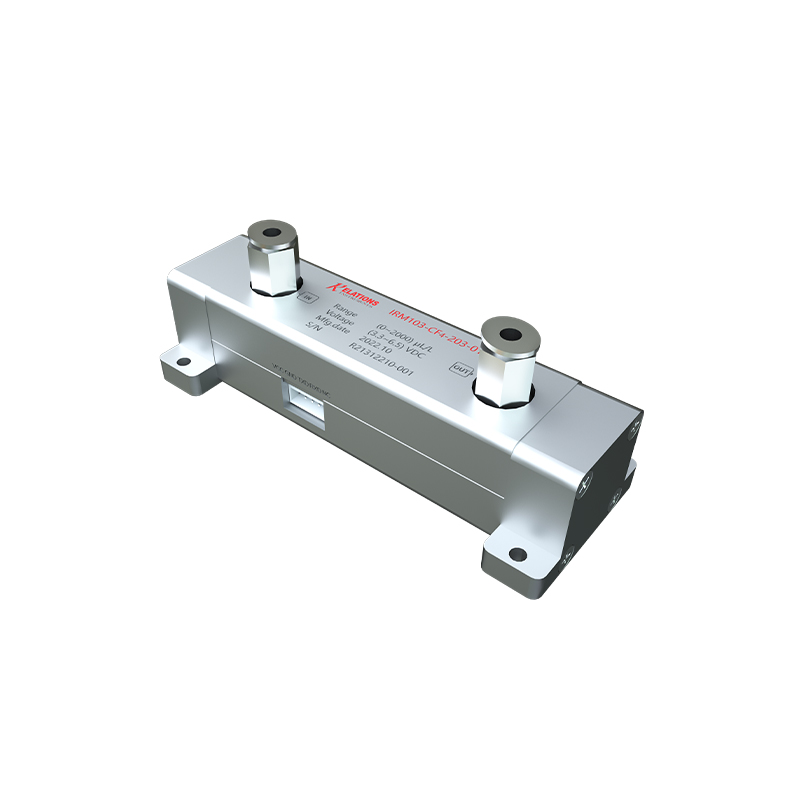

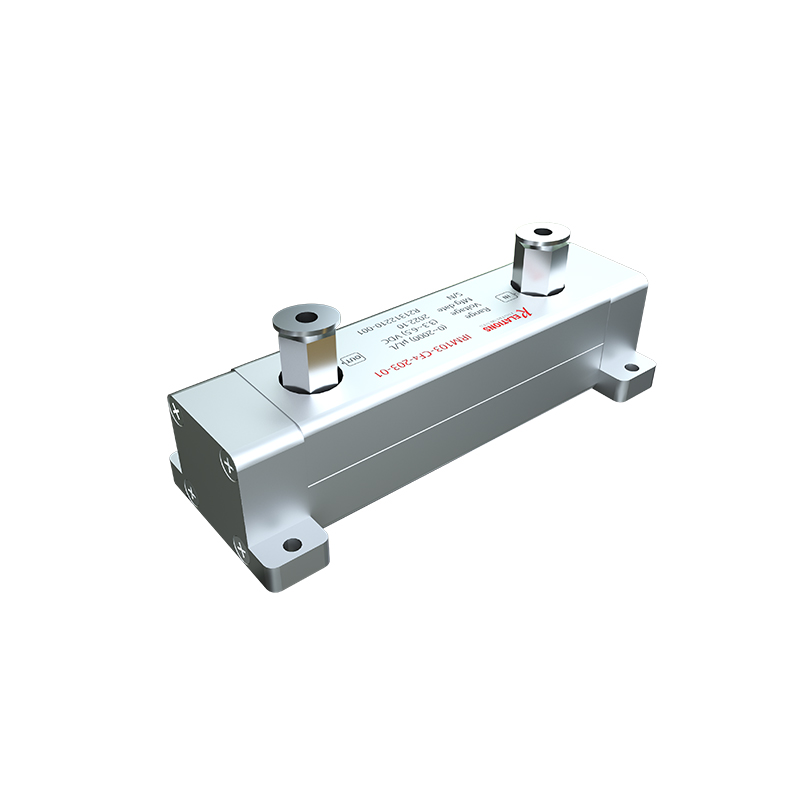

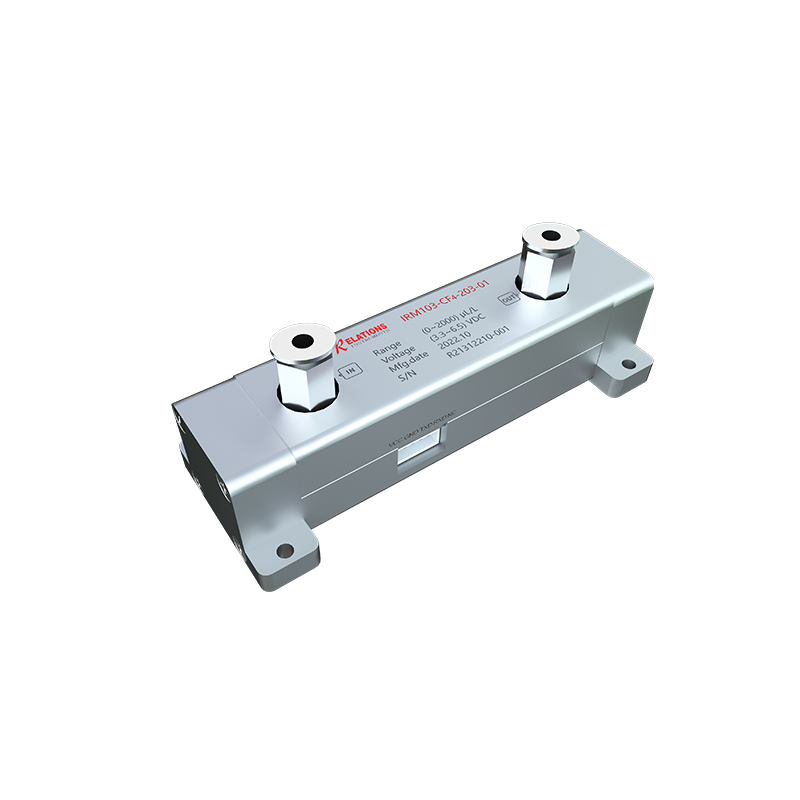

IRM103 Series In-line Infrared CF₄ Sensor is a gas sensor based on the principle of single-light-source dual-wavelength non-dispersive infrared (NDIR) measurement technology. This sensor adopts a high-end infrared light source and pyroelectric detector, with gold-plated components used as the optical path channel, improving measurement accuracy and stability. It is applied in industries such as power, petrochemical, food processing, and semiconductor, and is suitable for gas analysis, leakage alarm, environmental protection, and industrial safety applications.

▎Key Features ：

1.False-alarm prevention fault diagnosis technology.

2.Temperature and pressure compensation technology.

3.Fully gold-plated anti-corrosion gas chamber.

4.Service life of more than 10 years.

▎Technical Specifications ：

Parameter Name	Parameter Value
Detection Principle	Single-light-source dual-wavelength NDIR (Non-Dispersive Infrared)
Target Gas	Carbon Tetrafluoride (CF₄)
Range	(0~1000) μL/L; (0~2000) μL/L
Warm-up Time	＜2min
Flow Rate	(0.2~1) L/min
Sampling Method	In-line
Linearity Error	＜±1%F.S
Response Time (T₉₀)	＜11s
Repeatability	＜1%
Detection Limit	1%F.S
Resolution	1ppm
