▎Product Introduction ：

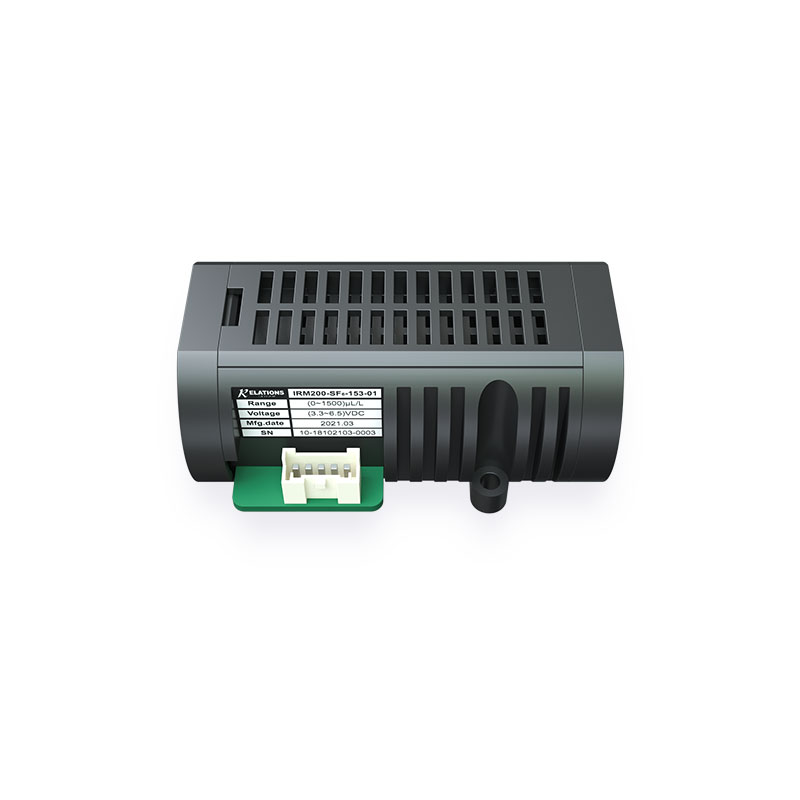

The IRM200 Series Diffusion-type Infrared SF₆ Sensor is a gas sensor based on the principle of single-light-source dual-wavelength non-dispersive infrared (NDIR) measurement technology. This sensor employs high-end infrared light sources and detectors, utilizing gold-plated components as optical path reflectors to enhance measurement accuracy and stability.
▎Key Features ：
1.Fully gold-plated corrosion-resistant reflector.
2.Anti-condensation technology.
3.Service life >10 years.
4.False-alarm-proof fault diagnosis technology.
5.Temperature and pressure compensation technology.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Detection Principle |
Single-light-source dual-wavelength (NDIR) |
Range |
(0~2000) μL/L |
Warm-up Time |
<2min |
Sampling Method |
Diffusion type |
Linearity Error |
<±2%F.S |
Response Time (T₉₀) |
<40s |
Repeatability |
＜1% |
Detection Limit |
1%F.S |
Resolution |
1μL/L |
Sensor Noise |
2μL/L |
Detectable Gases and Measurement Ranges
Gas Type |
Sensor Range |
SF₆ |
(0~1000) μL/L (0~1500) μL/L |
R22 |
(0~2000) μL/L |
Note: Custom ranges and gas types available (including but not limited to CO₂, CO, SO₂, CH₄, C₃H₈, HC, NO, etc.) |
|
