▎Product Introduction ：

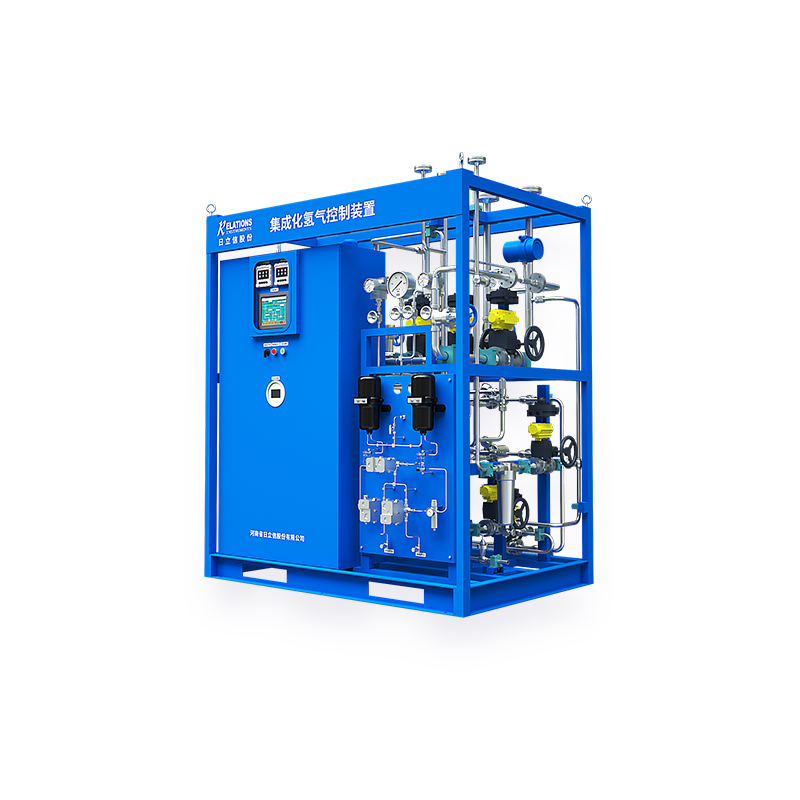

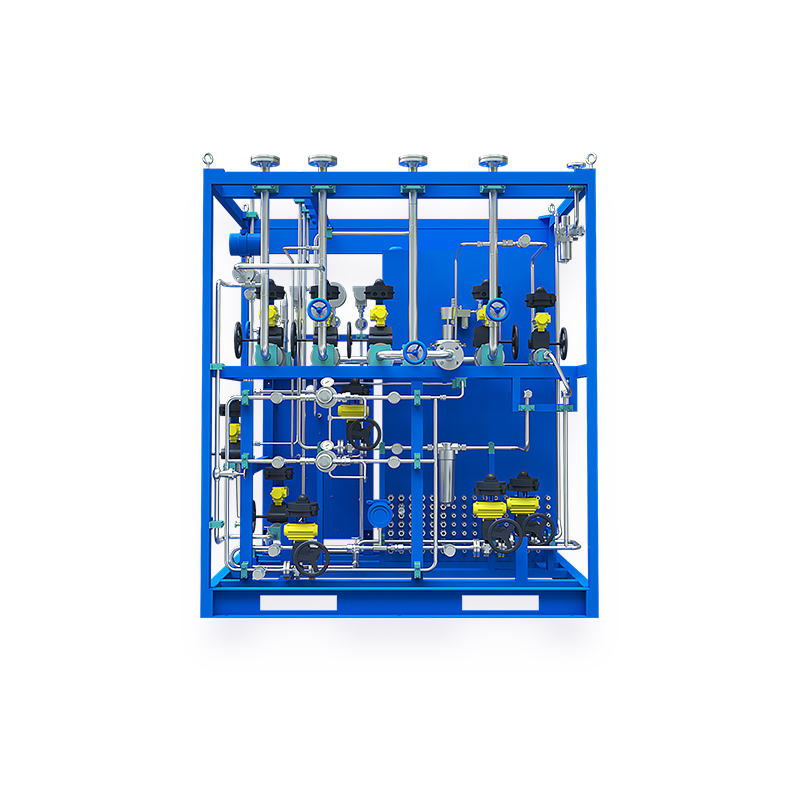

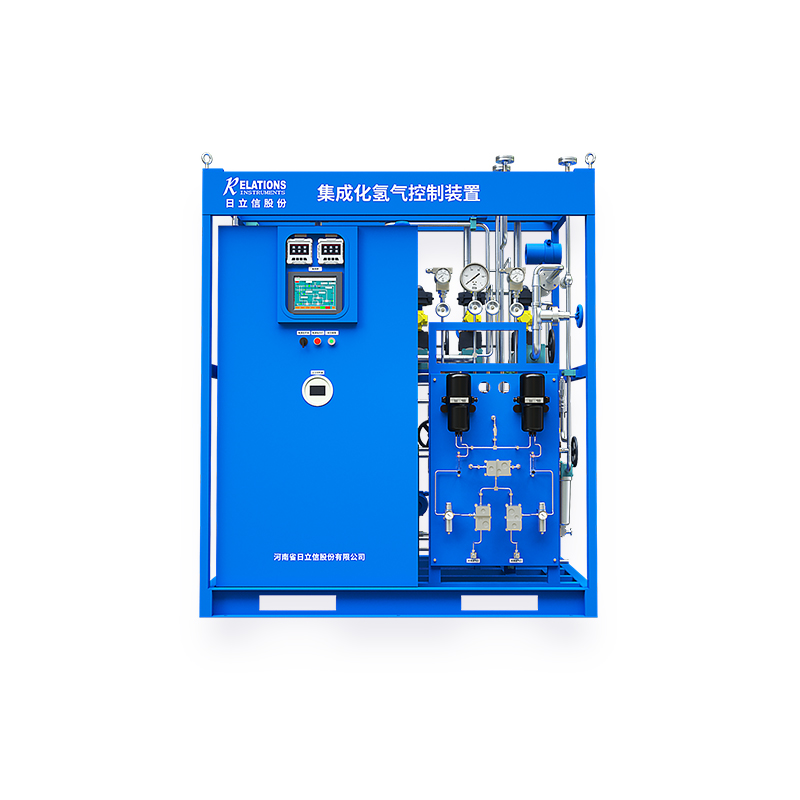

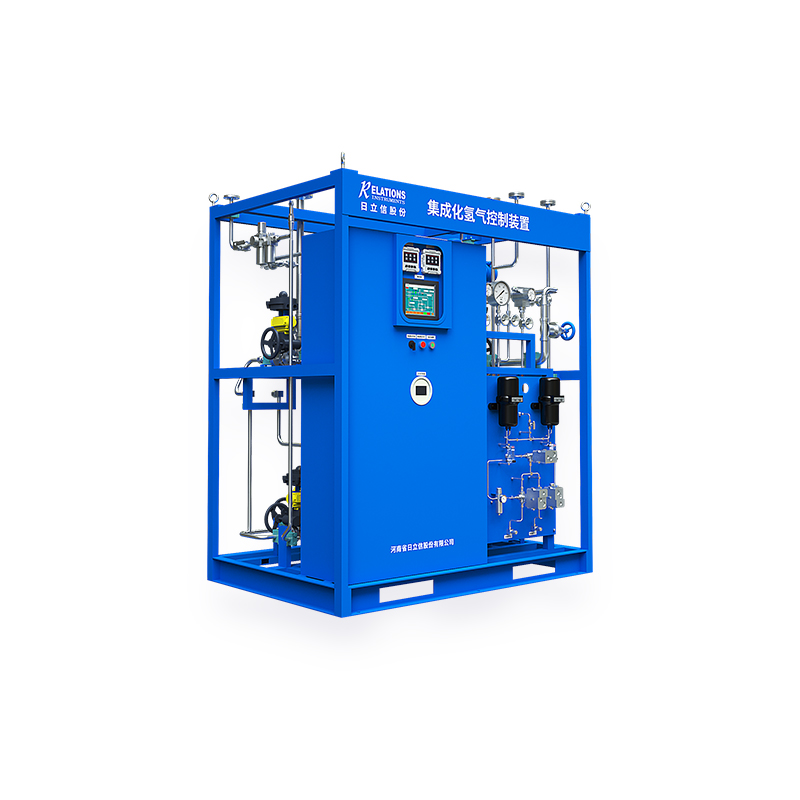

The JCQK Integrated Hydrogen Control Unit enables seamless conversion and control of generator hydrogen processes including gas replacement, filling, replenishment and purging, maintaining internal hydrogen pressure within rated parameters while providing real-time monitoring of hydrogen conditions. Featuring either cabinet-type or open-frame design, this fully integrated system combines multiple critical components within a single enclosure: pressurized explosion-proof distribution cabinet, hydrogen pressure regulators, pressure transmitters, differential pressure transmitters, pressure switches, hydrogen mass flow meters, hydrogen/air filters, safety valves, hydrogen purity/humidity/O₂-in-H₂/leak monitoring analyzers, hydrogen valves and gas piping - ensuring simplified installation, operation and maintenance while guaranteeing generator operational safety.
▎Key Features ：
1.Automatic H₂ replenishment with flow recording.
2.Dual pressure regulators for continuous operation.
3.Real-time monitoring of H₂ pressure/purity.
4.Single-operator gas replacement capability.
5.CO₂/H₂/O₂ purity monitoring during operations.
6.Safety valve for overpressure protection.
▎Technical Specifications ：
Parameter |
Value |
Design Pressure |
1.0 MPa |
Inlet Pressure |
(0.6~1) MPa |
Outlet Pressure |
(0.3~0.6) MPa |
Power Supply |
220 VAC |
Signal Output |
(4~20) mA + Digital Switch |
Weight |
600 kg |
