▎Product Introduction ：

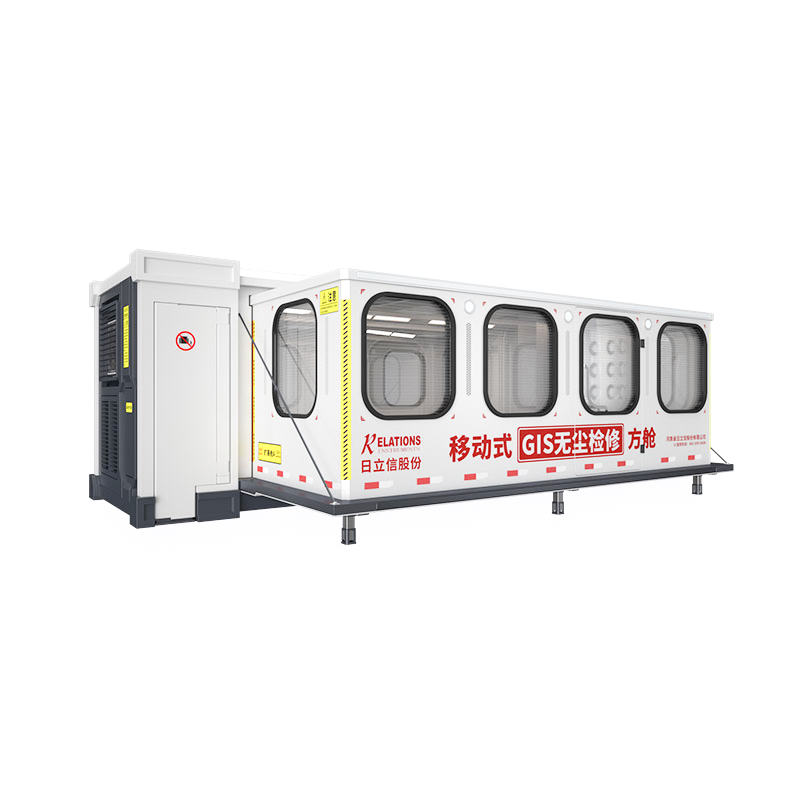

The Mobile GIS Clean Maintenance Module is specifically engineered for demanding power maintenance scenarios, integrating a dust-free temperature-controlled environment, intelligent monitoring, and high-efficiency mobility.The module features a multi-stage purification system and ISO-certified sealed design to eliminate external contaminants, while smart temperature and humidity controls ensure stable equipment maintenance conditions. Its built-in dual monitoring system for both environmental and equipment status provides real-time alerts and coordinated adjustments. The self-lifting chassis eliminates crane requirements, enabling immediate stop-and-go deployment.This solution delivers safe, precise, and efficient maintenance for GIS equipment, driving advanced power operations management.
▎Key Features ：
1.High-efficiency multi-stage filtration system: Achieves >99.99% filtration efficiency for 0.3μm particles, meeting ISO 14644 standards.
2.Seamless welding + air shower dual-sealing design: Completely isolates dust, moisture, and external contaminants.
3.Intelligent temperature control: Maintains -10°C to 40°C with minimal fluctuation. Humidity control system dynamically adjusts interior levels, stabilizing at ≤80%.
4.Real-time environmental monitoring display: Shows live data, coordinates equipment adjustments, and triggers smart alarms.
5.Built-in sensors: Continuously monitor GIS equipment status with intelligent fault pre-warning.
6.Enhanced mobility: Self-lifting mechanism enables crane-free deployment for immediate use.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Weight |
14t |
Power Rating |
13.5kW |
Lifting Height |
28m |
Effective Space |
1.6m |
Cleanliness Class |
Class 1,000,000 |
Operating Temperature Range |
-10°C~40°C |
Constant Environment |
Maintains 24°C at 70% RH |
Communication |
4G transmission |
Input Voltage |
380±10V |
Output Voltage |
220±10V |
Dimensions |
8126mm×2400mm×2857mm (L×W×H) |
