▎Product Introduction ：

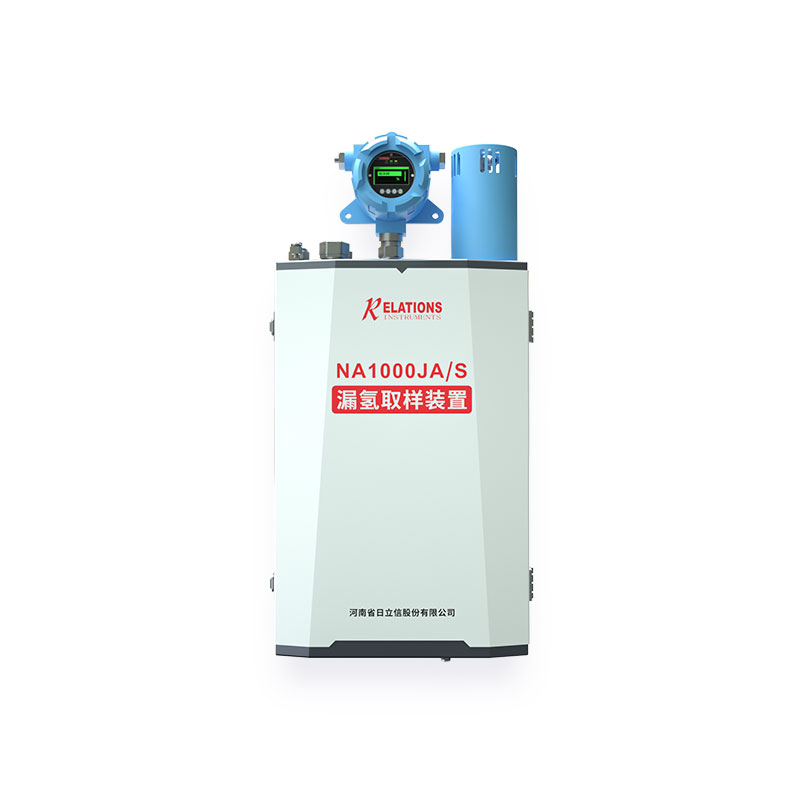

The NA1000JA/S is an advanced online monitoring system for precise measurement of H₂ leakage/concentration and hydrogen removal in cooling water tanks, comprising the NA1000MR multi-channel alarm controller, NA1000A gas detector, remote flow meter and hydrogen removal system. The NA1000A monitors real-time H₂ concentration while the flow meter collects exhaust data, both transmitted to the NA1000MR which calculates leakage via integral algorithms to display real-time H₂ levels/daily leakage/exhaust volumes with data storage and alarm signaling.

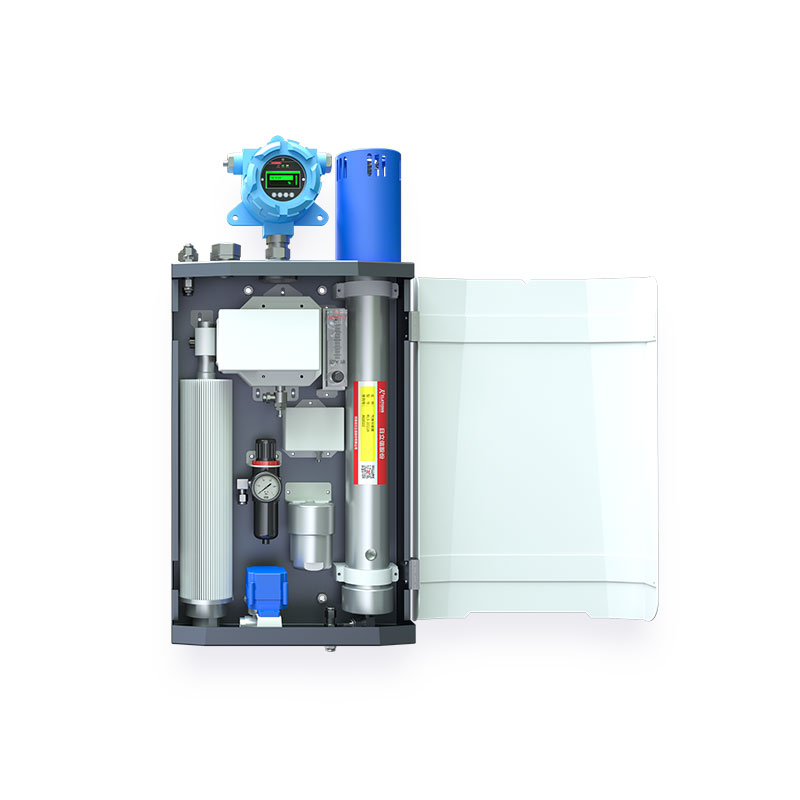

Featuring condensation pretreatment that reduces moisture/temperature effects on detectors through two-stage gas processing and flow control, the system ensures operational safety via continuous monitoring. Its nitrogen generation function provides stable N₂ input using compressed air to maintain gas circulation and eliminate H₂ leakage risks.
▎Key Features ：
1.Measures H₂ concentrations (0~20)%.
2.Displays real-time/daily/cumulative leakage data.
3.Alarms at 2%/10% H₂ or 0.3m³/5m³ daily leakage.
4.Historical data review by date/month/year.
5.DCS integration for real-time data transmission.
6.Built-in nitrogen generation eliminates H₂ risks.
▎Technical Specifications ：
Parameter |
Value |
Operating Voltage |
12 VDC |
Inlet Pressure |
(0.4~0.6) MPa |
N₂ Flow Rate |
0.5~1 L/min |
Output Interface |
RS-485 |
Ambient Humidity |
(0~85)% RH |
Ambient Temp. |
(-10~+50)°C |
Dimensions |
505×320×130 mm (L×W×H) |
Weight |
15 kg |
