▎Product Introduction ：

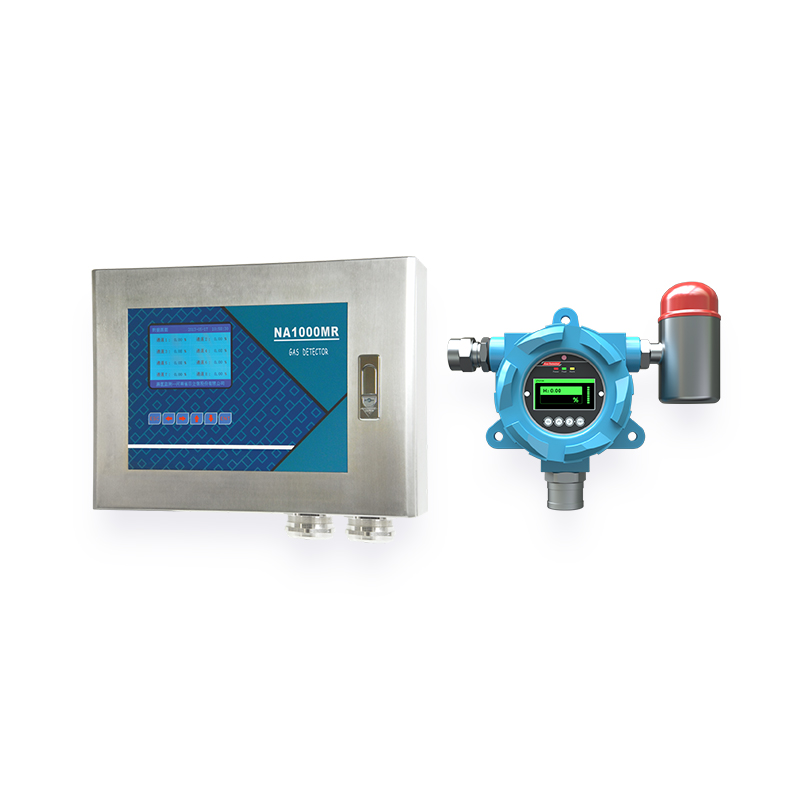

The NA1000MS consists of NA1000MR multi-channel alarm controller and NA1000A gas detector for monitoring target gas concentrations in ambient air, supporting multiple probes for centralized multi-point control. The NA1000A's diffusion-based sensor detects NH₃ concentrations (particularly indoors), with processed signals displaying locally while transmitting via (4~20)mA current, RS485 communication and alarm contacts.
▎Key Features ：
1.Centralized bus or independent zone power supply options.
2.Dual-level concentration alarms with real-time monitoring.
3.High-sensitivity anti-poisoning sensors with automatic aging compensation.
4.Automatic sensor fault detection and high-concentration gas limit function.
5.Startup self-test with self-diagnosis/self-repair and adjustable calibration.
6.Automatic sensor failure alarm to prevent missed detections.
▎Technical Specifications ：

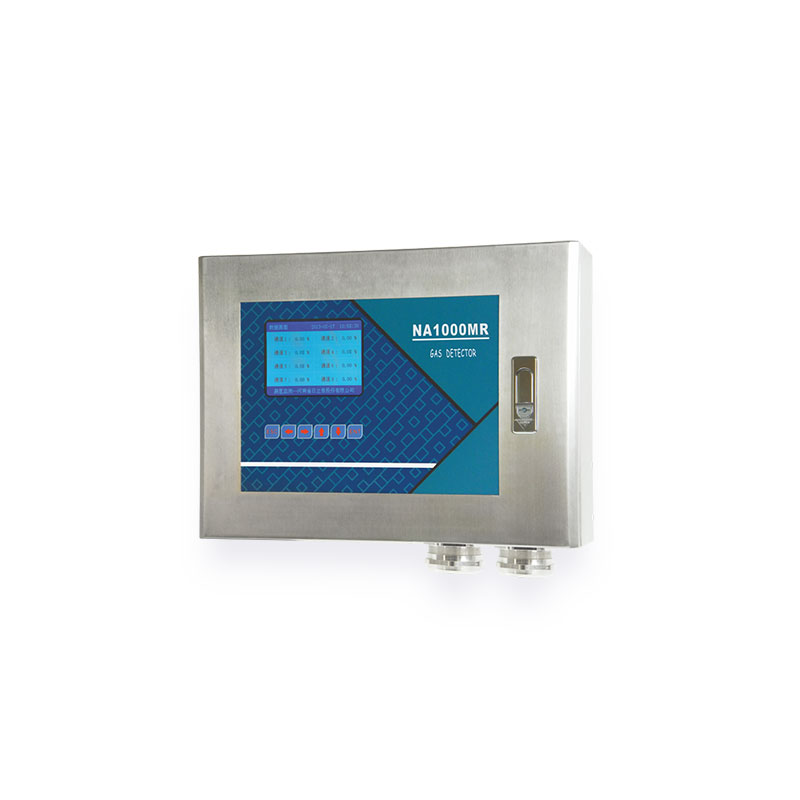

NA1000MR Controller |
|
Display Color |
TFT256 color |
Input Type |
(1~8) channels 2/3-wire, (4~20) mA transmitters (expandable to 16) |
Uncertainty |
<±0.1% F.S |
Input Impedance |
120 ohm |
Connection |
3-core shielded cable |
Interface |
RS-485 bus (4~20) mA |
Connection Method |
2-core shielded cable (bus type) |
Contact Type |
Normally Open (NO) |
Output Mode |
(1~16) sub-alarms, 1 master alarm |

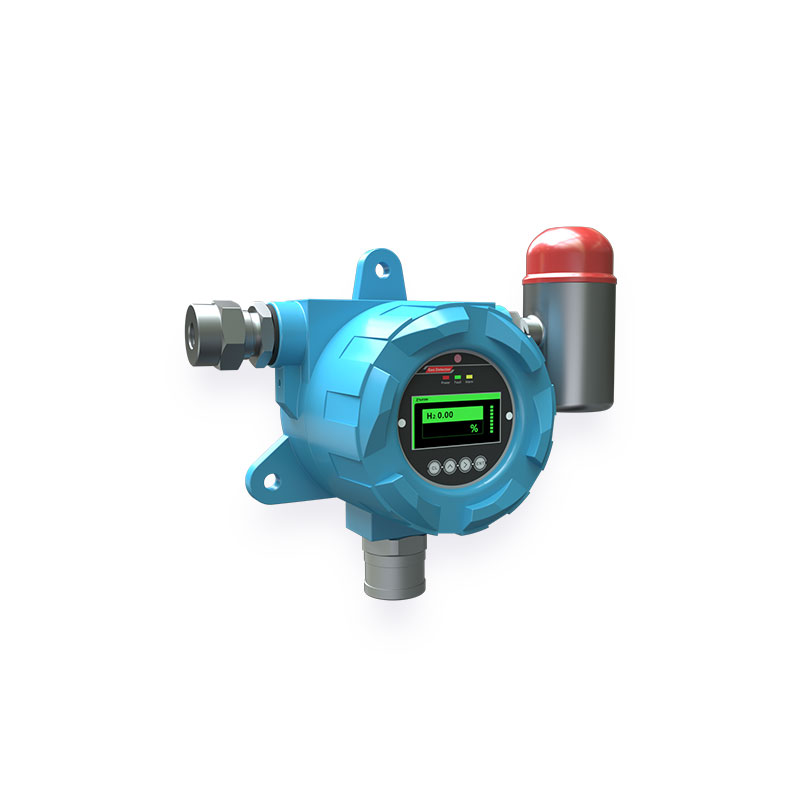

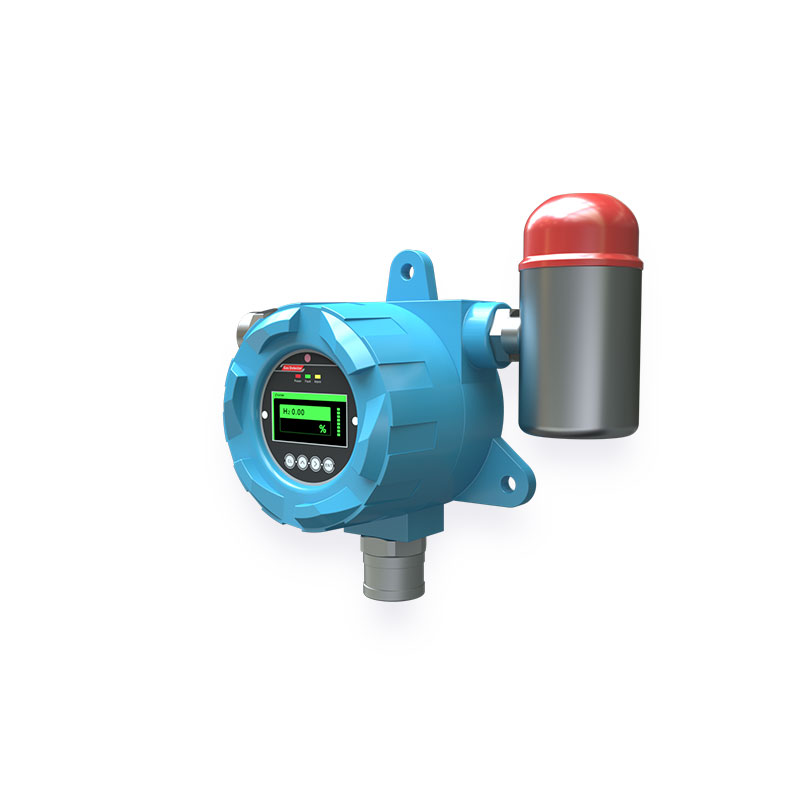

NA1000A Gas Detector |
|
Detectable Gases |
NH₃, CH₄, LPG, coal gas, alcohol, toluene, gasoline (combustible) O₂, CO (toxic). Customizable. |
Accuracy |
±5% F.S |
Repeatability |
2% |
Range |
(0~100) ppm (gas-specific) |
Low Alarm Range |
(20~30) ppm |
High Alarm Range |
(30~70) ppm |
Low Alarm Setpoint |
25 ppm |
High Alarm Setpoint |
50 ppm |
Response Time |
<30 s |
Sampling Method |
Natural diffusion |
