▎Product Introduction ：

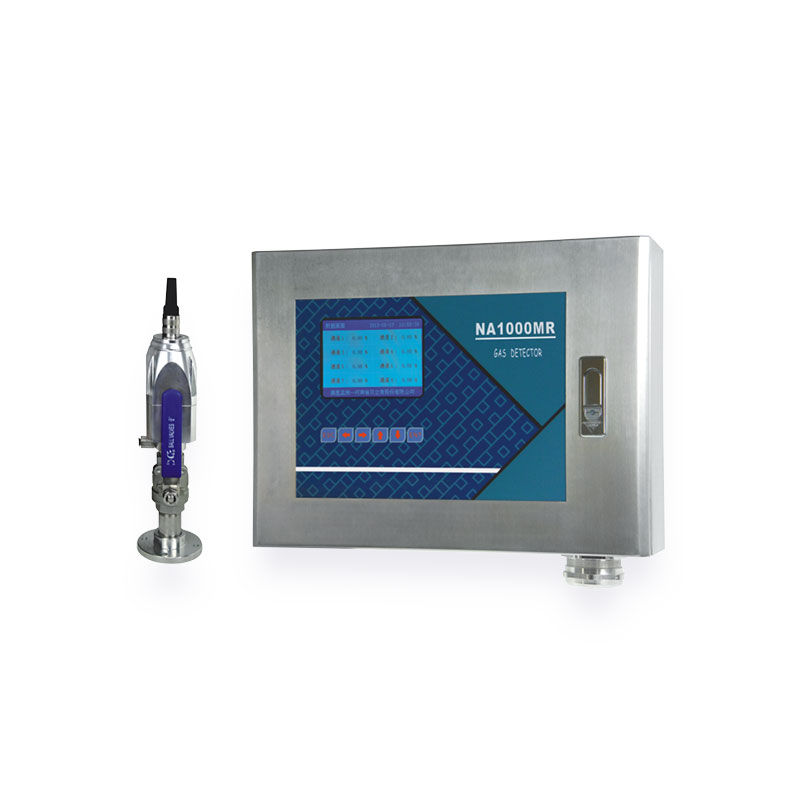

The NA1000MS integrates NA1000MR controller and NA1000DII transmitters to monitor H₂ concentrations below explosion limits in hydrogen-cooled generators, supporting 16 transmitters for centralized multi-point control with high-performance transmitters converting gas signals to electrical outputs displayed on color LCD, triggering alarms at preset levels for safety measures.
▎Key Features ：
1.Custom sampling systems for generator neutral points/turbine-bearing oil return/cooling water tanks.
2.Explosion-proof metal transmitters (Ex ia IIC T4 Ga).
3.Easy maintenance via core component replacement.
▎Technical Specifications ：

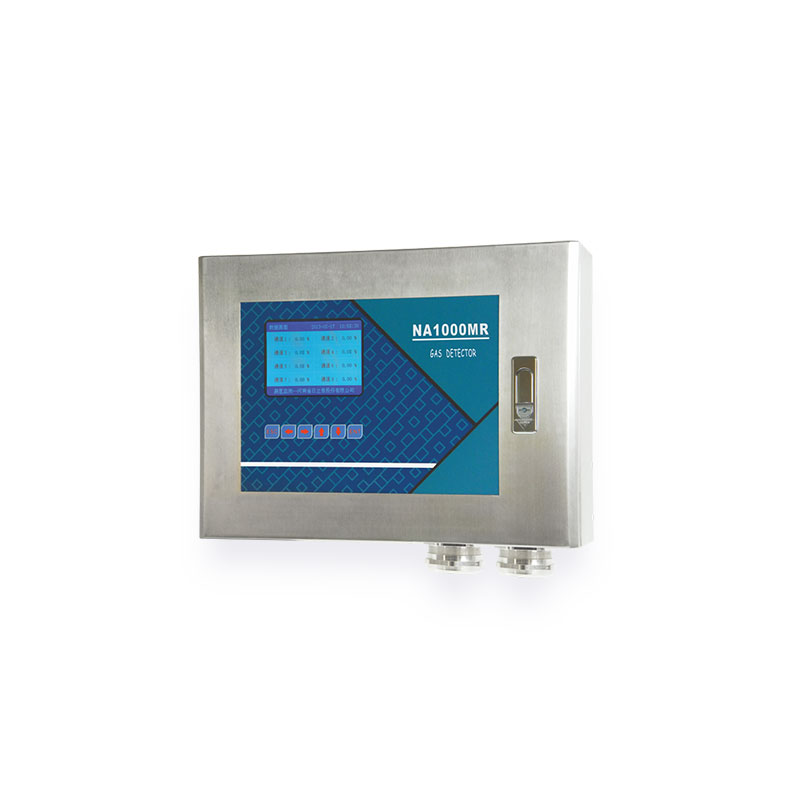

NA1000MR Controller |
|
Display |
TFT256 color (LCD) |
Input Type |
(1~8) channels 2-wire, (4~20) mA transmitters (expandable to 16) |
Power Consumption |
24V; ≤0.48W |
Connection |
2-core shielded cable |
Output Type |
(1~8) channels (4~20) mA current output (expandable to 16) |
Output Impedance |
<750 ohm |
Contact Type |
Normally open |
Output Mode |
(1~16) sub-alarms, 1 master alarm |
DC Voltage |
1A, 30VDC or 1A, 250VAC |
Alarm Storage |
8000 records |
Operating Voltage |
210~230 VAC, 50/60 Hz |
Mounting |
Wall-mounted |
Dimensions |
440×330×130 mm (L×W×H) |
Weight |
9.5 kg |
NA1000DII Transmitter |
|
Detection Range |
(0~4)% or (0~100)% LEL |
Accuracy |
±2% F.S |
Sampling Method |
Natural diffusion |
Ambient Temp. |
(-10~50)°C |
Ambient Humidity |
(0~98)% RH |
Explosion-proof Rating |
Ex ia IIC T4 Ga |
Operating Voltage |
24 VDC, <1W |
