The PEM Water Electrolysis Hydrogen Production System is a high-efficiency, energy-saving, and green hydrogen production equipment independently designed and developed by our company. This system comprises multiple modules including the power supply unit, pure water unit, control unit, electrolysis unit, cooling unit, purification unit, and mainframe unit.The purification unit employs TSA purification technology, along with deoxygenation and dehydration devices to remove trace oxygen and moisture from the hydrogen side of the electrolyzer, ensuring hydrogen purity and humidity requirements, and meeting end-users' on-site demand for high-purity hydrogen output.The system offers scalable hydrogen production capacity ranging from (0.5–200) Nm³/h per unit, with hydrogen purity reaching 99.999%.

▎Key Features ：

1.High hydrogen purity: With hydrogen purity reaching 99.999%, no additional purification is required, making it directly applicable for fuel cells or other high-purity hydrogen applications.

2.Rapid response: The system enables quick start-stop operation and excellent load variation adaptability, making it ideal for integration with renewable energy sources, particularly intermittent or fluctuating ones like wind and solar power.

3.Safe and reliable: Features zone-specific explosion-proof design with comprehensive fire alarm safety systems. Utilizes nuclear-grade integral welding technology to minimize leakage points and ensure secure operation.

4.Modular design: Employs modular architecture for easy capacity expansion according to user requirements, while simplifying maintenance and component replacement.

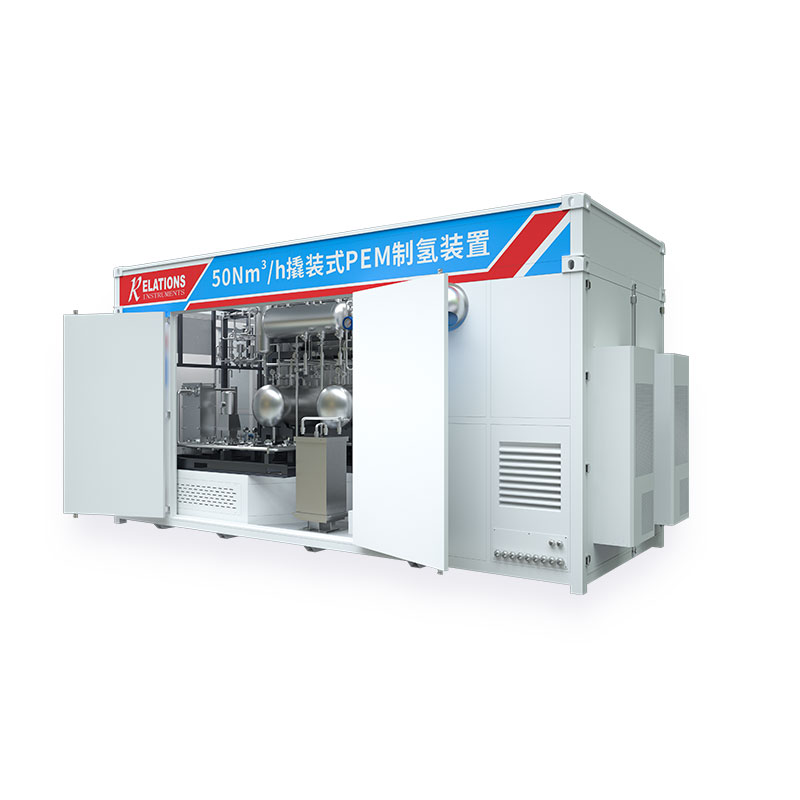

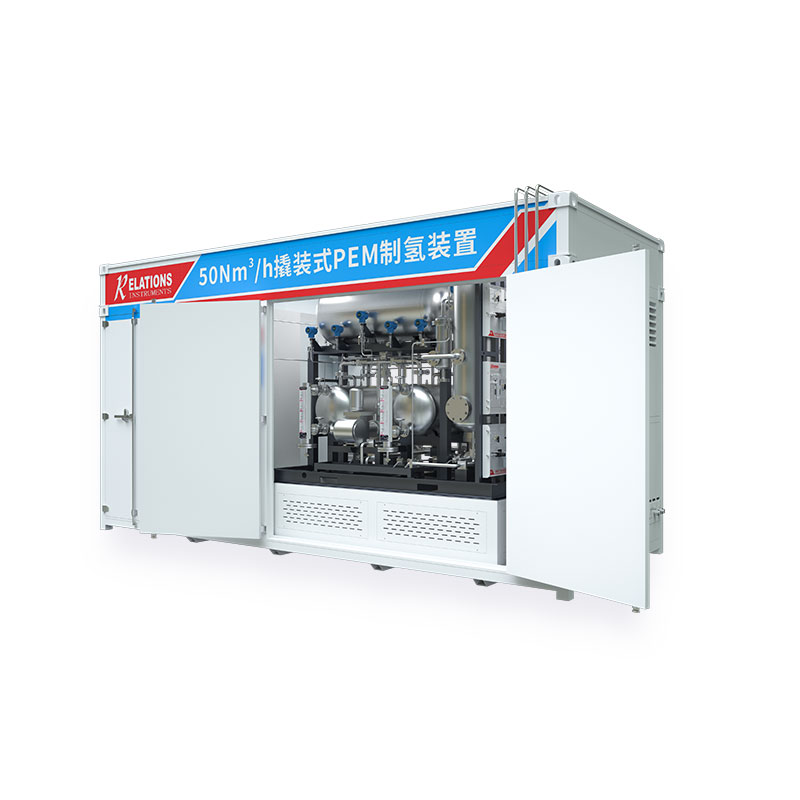

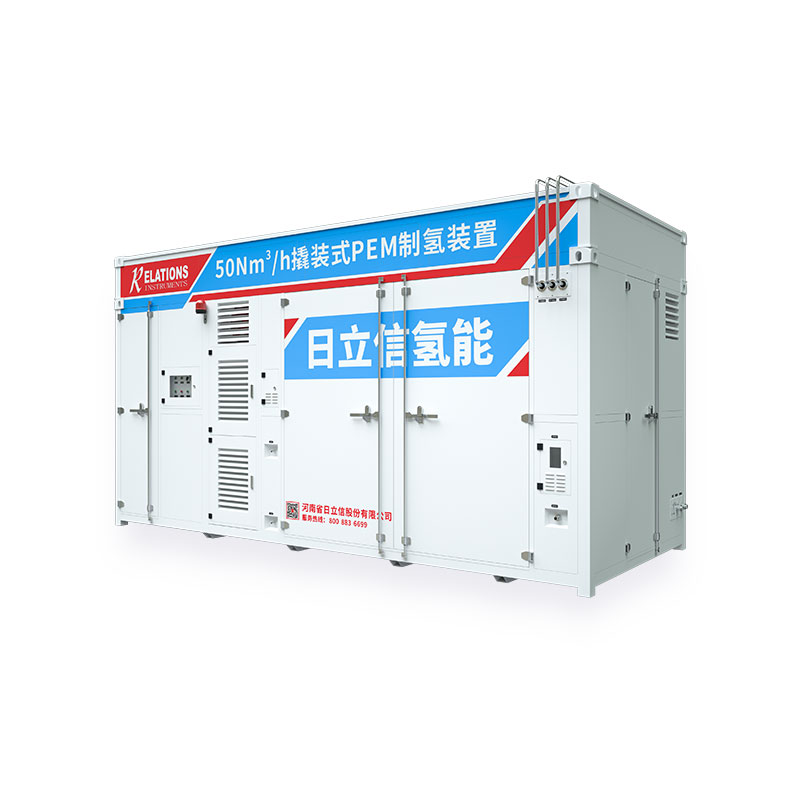

5.Compact structure: Adopts containerized design for short-distance mobility and minimal footprint.

6.6. User-friendly operation: Incorporates one-touch startup with high automation levels, significantly reducing operational complexity.

7.Environmentally friendly: PEM electrolysis produces hydrogen without harmful emissions, offering a clean hydrogen production method that contributes to carbon neutrality goals.

8.Extended service life: The PEM electrolyzer's proton exchange membrane and catalysts typically feature prolonged durability, ensuring stable long-term operation with minimal maintenance requirements.

▎Technical Specifications ：

For Research & Education
Parameter Name	Parameter Value
Model Number	RHP-H-0.5、RHP-H-1、RHP-H-2
Technology	PEM water electrolysis
Hydrogen Production	0.5Nm³/h、1Nm³/h、2Nm³/h (8L/min、16L/min、33L/min)
H₂ Outlet Pressure	1.6MPa、3MPa (16bar、30bar)
H₂ Purity	99.999% (with hydrogen purification)
Operating Range	(10~100) %
DC Power Consumption	4.5kWh/Nm³
PEM System Dimensions	1200×800×1800 mm (L×W×H)
Control System Dimensions	800×600×1800 mm (L×W×H)
For Industrial Sites
Parameter Name	Parameter Value
Model Number	RHP-H-5、RHP-H-10
Technology	PEM water electrolysis
Hydrogen Production	5Nm³/h、10Nm³/h
H₂ Outlet Pressure	1.6MPa、3MPa (16bar、30bar)
H₂ Purity	99.999% (with hydrogen purification)
Operating Range	(10~100) %
DC Power Consumption	4.5kWh/Nm³
Enclosure Dimensions	2400×1800×2000 mm (L×W×H)
For Large Low-Carbon Parks
Parameter Name	Parameter Value
Model Number	Custom PEM water electrolysis systems
Hydrogen Production	100Nm³/h、200Nm³/h
H₂ Outlet Pressure	1.6MPa、3MPa (16bar、30bar)
H₂ Purity	99.999% (with hydrogen purification)
Operating Range	(10~100) %
DC Power Consumption	4.5kWh/Nm³
PEM System Dimensions	40-foot standard container: 12000×2400×2600 mm (L×W×H)
Control System Dimensions	20-foot standard container: 6000×2400×2600 mm (L×W×H)
