▎Product Introduction ：

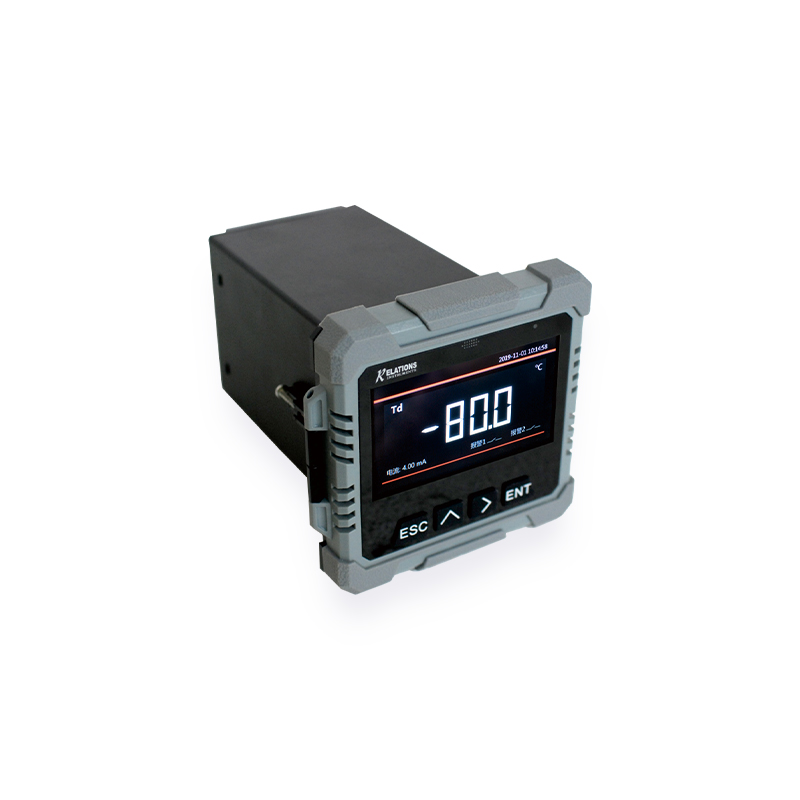

The microprocessor-based RA242J incorporates advanced technologies such as the patented polymer film sensor Drycap and automatic calibration function, and is equipped with a precision sample gas sampling system and an intelligent digital processing display control unit. It offers long-term high stability, a wide measurement range, and fast response. Additionally, it is resistant to condensation, dust particles, and unaffected by oil vapor and most chemical gases, making it an ideal instrument for dry environment measurements.
▎Key Features ：
1.Anti-condensation, long-term stability and reliability in low-temperature dew point measurement.
2.High-pressure resistance, with temperature compensation function.
3.Fast response, simple operation, low maintenance.
4.Large-screen display with touchscreen operation.
▎Technical Specifications ：
Parameter |
Value |
Dew Point Range |
(-80~+20)°C |
Accuracy |
Better than +1°C |
Repeatability |
±1°C |
Analog Output |
(4~20) mA |
Sensor Protection |
Stainless steel sintered filter |
Enclosure Rating |
IP65 (NEMA4) |
Temperature |
(-20~60)°C |
Relative Humidity |
(0~100)% RH |
Pressure |
(0~40) MPa |
Sample Flow Rate |
No effect |
Power Supply |
AC 220V |
Explosion-proof Rating |
Ex d IIC T6 Gb |
Weight |
7.5 kg |
Control Unit |
Panel-mounted (cutout:92×92 mm) |
Sampling System |
Wall-mounted (500×400×70 mm, L×W×H) |
