RA601H(II) Hydrogen Comprehensive Analyzer

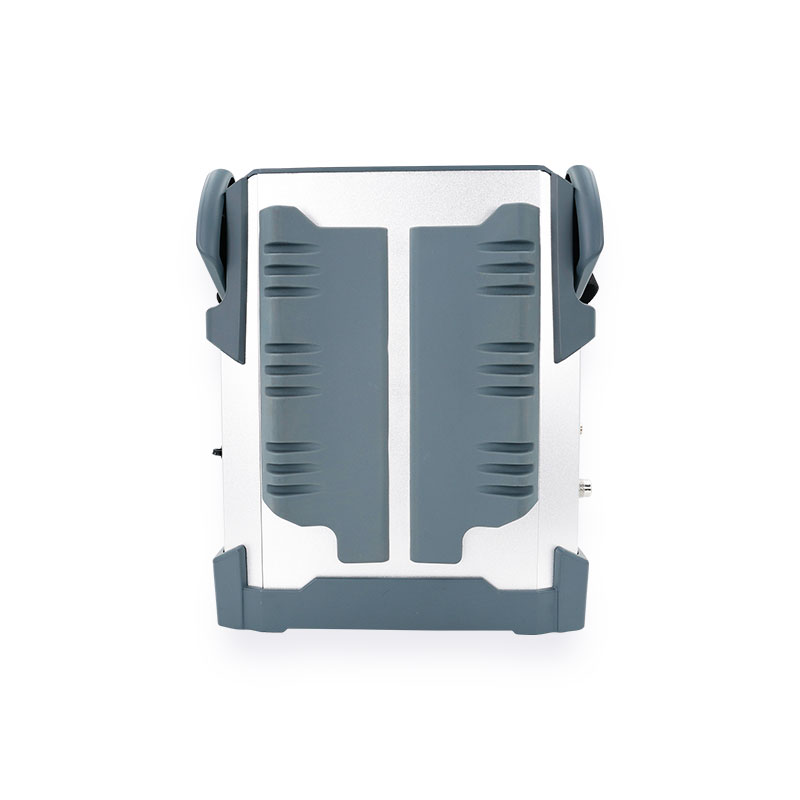

The RA601H(II) Hydrogen Comprehensive Analyzer is mainly used for measuring hydrogen purity, humidity, oxygen content, and CO₂/O₂ levels during gas replacement in hydrogen-cooled generators and hydrogen production stations. Incorporating MEMS technology, it achieves faster response and higher accuracy while reducing size and weight. Ergonomically designed, it is compact and lightweight with a soft rubber back for comfortable portability. Features include large-capacity data storage, USB interface, self-test alerts for abnormal status, and charging indicators. The soft power switch prevents misoperation.

▎Key Features ：

1.Environmental pressure measurement and hydrogen pressure input for automatic humidity-pressure conversion.

2.Built-in humidity drying protection device with self-calibration.

3.Compact A4-sized design for reduced size and weight.

▎Technical Specifications ：

Purity Measurement
Principle	Micro thermal conductivity
Range	H₂/Air: (90~100)%; CO₂/H₂: (0~100)%; CO₂/Air: (0~100)%
Uncertainty	±2% F.S
Response Time	≤15 s
Humidity Measurement
Principle	Capacitive
Range	(-80~20)°C
Uncertainty	±2°C
Response Time	@20°C gas temp: -60°C~-20°C: 5s (63%), 10s (90%) -20°C~-60°C: 45s (63%), 10min (90%)
Oxygen Measurement
Principle	Electrochemical
Range	(0~25)%
Uncertainty	±1% F.S
Response Time	≤20 s
Other Parameters
Power Supply	AC/DC dual-use, built-in Li-ion battery (6000 mAh) >8h
Dimensions	242×282×104 mm (L×W×H)
Weight	4 kg
Note: Customizable H₂/Air (0~100)%; Optional purge gases: CO₂, N₂, Ar, etc.
