▎Product Introduction ：

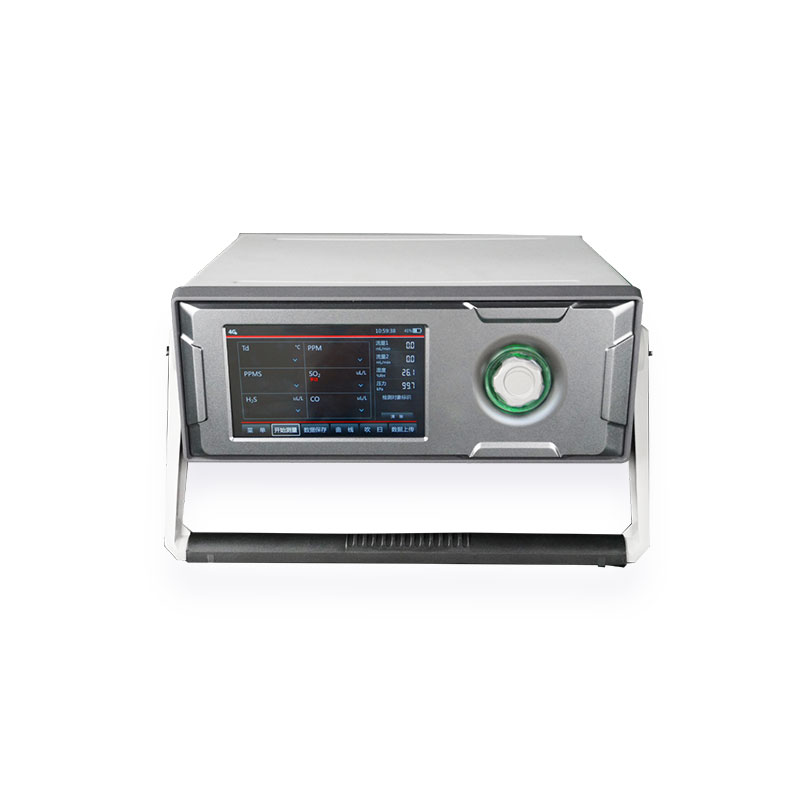

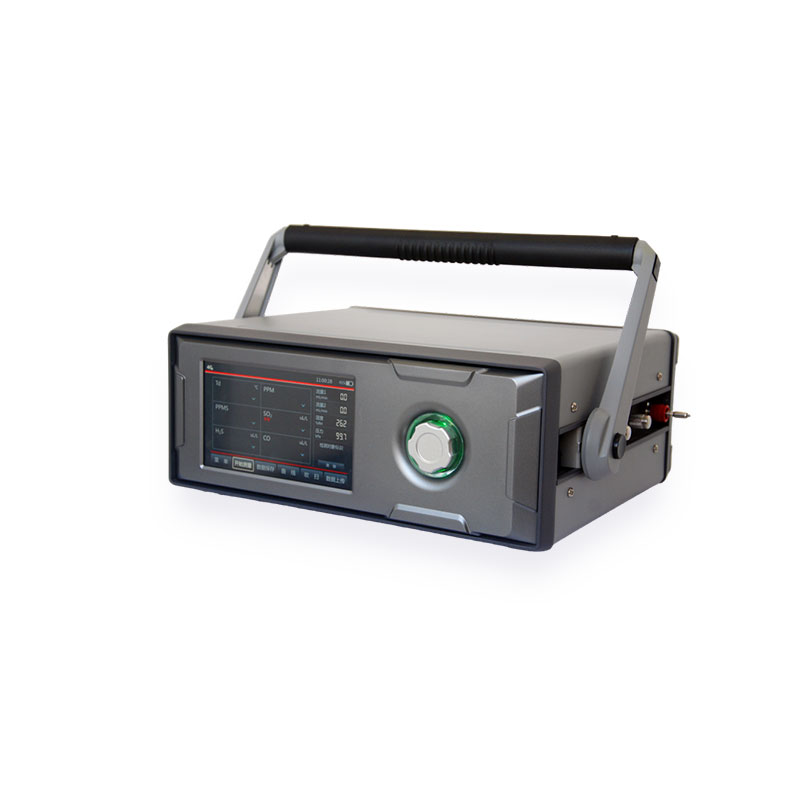

The RA912F SF₆ Gas Comprehensive Analyzer is Hitachi's latest high-precision intelligent detection instrument for on-site measurement of SF₆ gas purity, humidity and decomposition products in power, railway, petrochemical and electrical equipment manufacturing industries.
▎Key Features ：
1.Automatic ID recognition for data matching.
2.Customizable data upload for big data analysis.
3.Automatic flow regulation.
4.Inlet pressure monitoring with alarms.
5.Automatic diagnosis against national standards.
6.Auto/manual measurement modes with completion alerts.
7.One-click data export in utility-standard formats.
▎Technical Specifications ：
SF₆ Purity |
|
Principle |
Thermal conductivity |
Range |
(0~100) %(vol) |
Maximum Permissible Error |
±0.5%(vol) |
Humidity |
|
Principle |
Capacitive |
Range |
(-60~+20) °C |
Maximum Permissible Error |
±2°C |
SO₂ Detection |
|
Principle |
Electrochemical |
Range |
(0~100) μL/L |
Maximum Permissible Error |
(0~10) μL/L: 0.5uL/L; (10~100) μL/L: 5% |
H₂S Detection |
|
Principle |
Electrochemical |
Range |
(0~100) μL/L |
Maximum Permissible Error |
(0~10) μL/L: 0.5uL/L; (10~100) μL/L: 5% |
CO Detection |
|
Principle |
Electrochemical |
Range |
(0~500) μL/L |
Maximum Permissible Error |
(0~50) μL/L: ±2μL/L; (50~500) μL/L: ±4% |
