▎Product Introduction ：

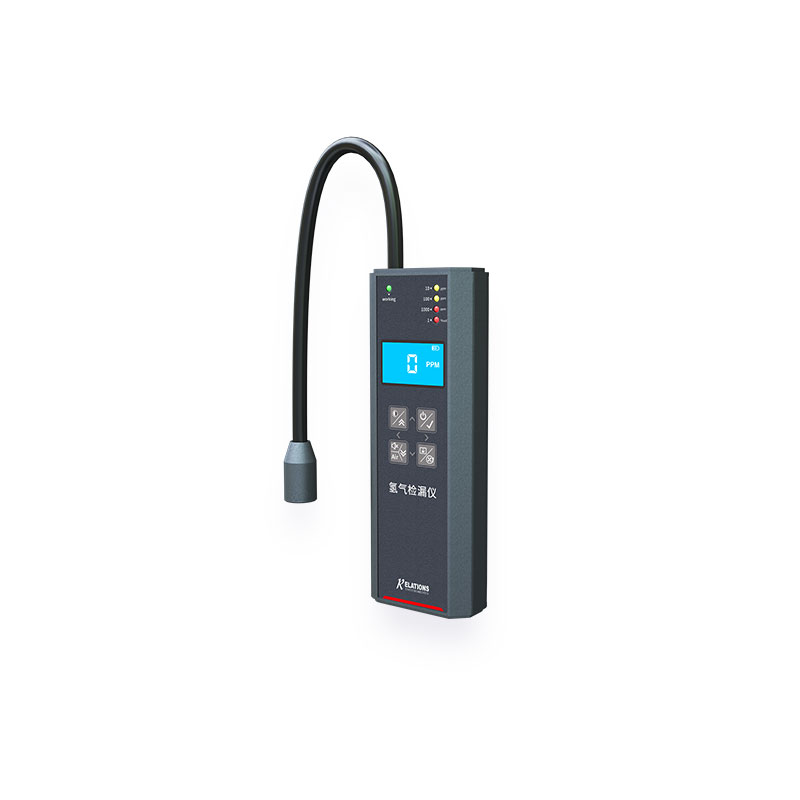

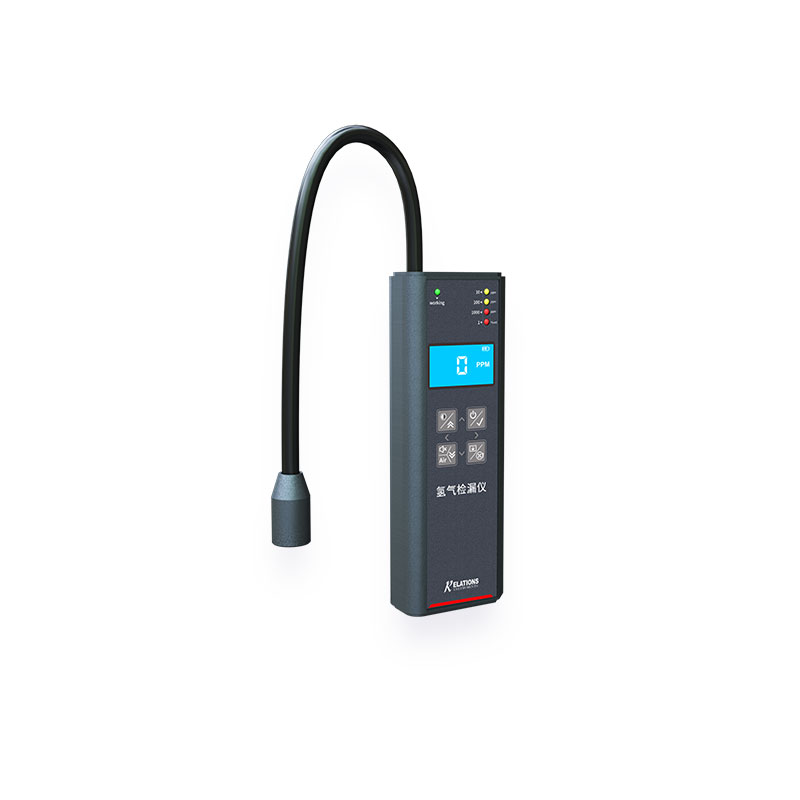

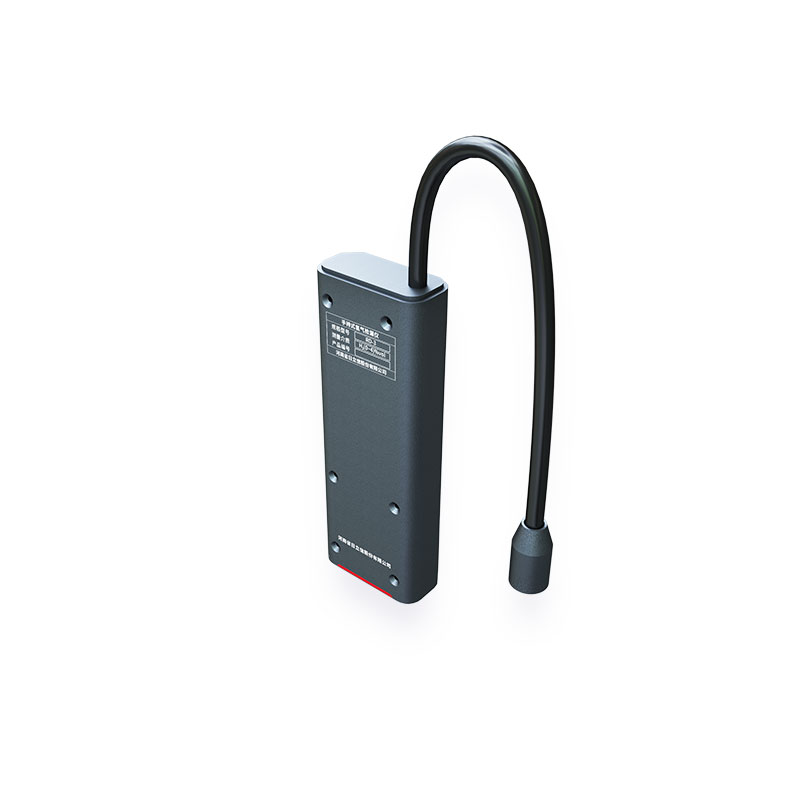

The RD-3 Hydrogen Leak Detector is a specialized hydrogen detection product independently developed by our company for applications including hydrogen production stations, hydrogen refueling stations, fuel cell system production workshops, and hydrogen testing laboratories. This product adopts a dual-sensor detection mode, integrating both 'high sensitivity for small ranges' and 'high accuracy for large ranges' multi-range leak detection capabilities, fully meeting users' 'one-meter-for-all' testing requirements.
The product features high sensitivity, fast response, and reliable safety performance. With a minimum detection limit of 1 ppm and T₉₀ <1 s, its core components incorporate advanced micro-detection technology and intelligent algorithms to directly convert ambient hydrogen concentration into quantitative readings, enabling precise leak detection across complex working conditions.
▎Key Features ：
1.Micro-leak detection.
2.Second-level response.
3.Four-stage audible & visual alarm.
4.Peak hold function.
5.Data hold function.
6.High-capacity lithium battery power supply with battery level detection and under-voltage alert.
7.Dual alarm modes (audible/visual) with manual mute and variable frequency alerts for different alarm conditions.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Model Number |
RD-3 |
Target Gas |
Hydrogen (H₂) |
Detection Range |
(0~1000) ppm; (0.1~4) %Vol |
Display |
LCD screen |
Sampling Method |
Pump suction (flow rate:200 ml/min) |
Operation Mode |
Keypad operation |
Warm-up Time |
<60s |
Response Time |
<1s |
Resolution |
1ppm |
Measurement Error |
30%@ (0~1000)ppm; 5%F.S@ (0.1~4)%Vol |
Operating Temperature |
(-20~+55) °C |
Operating Humidity |
(20~+80) %RH (non-condensing) |
