▎Product Introduction ：

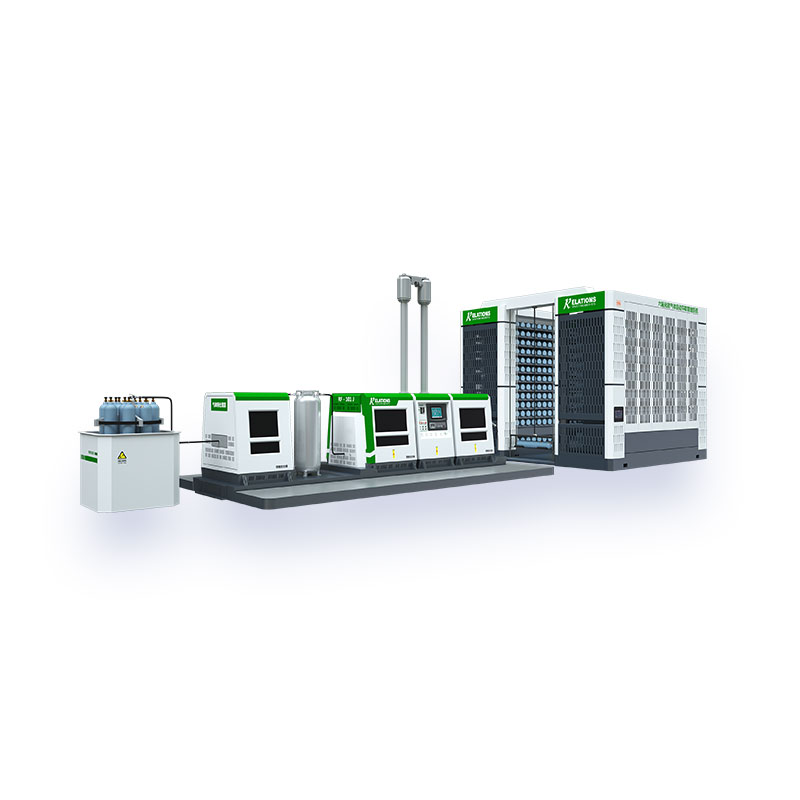

The RF-101J SF₆ Purification System integrates digital twin technology, deep SF₆ purification, and automated cylinder handling/storage to enable fully automated, contactless SF₆ gas processing - including recovery, purification, testing, filling, and cylinder logistics - for provincial-level SF₆ treatment centers.
▎Key Features ：
1. Complete SF₆ gas recovery, purification, filling and storage; purified SF₆ meets GB/T 12022 standards.

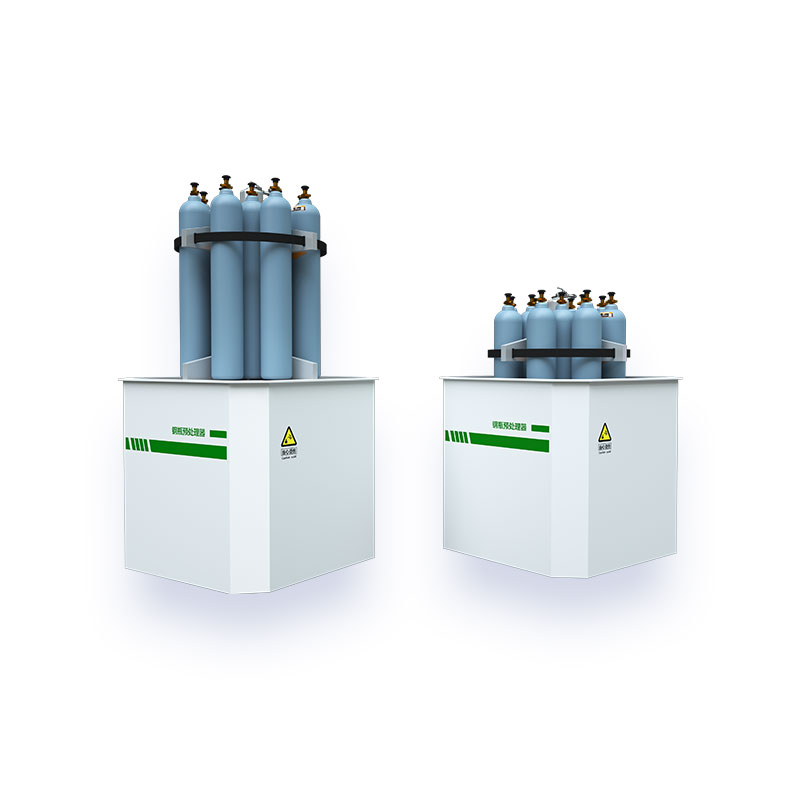

2. Cylinder pre-treatment: Water bath heating for vaporization to enhance recovery rate.
3. Gas pre-treatment: Handles high-concentration SF₆ decomposition byproducts in waste gas.
4. Gas buffer tank: Large-capacity SF₆ storage to improve processing efficiency.
5. Purification unit: Ensures high-quality SF₆ regeneration.
6. Liquid SF₆ filling: Fills 40L cylinders with 50kg SF₆ in (5-8) minutes.
7. Smart cylinder storage: Digital management of cylinder storage/issuance.
8. Industrial control system: Touchscreen operation with remote control capability.
9. Optional embedded analyzers: Measure SF₆ purity, humidity, and decomposition products.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Oil-free Water-cooled Compressor |
38 m³/h |
Final Output Pressure |
50 bar |
Oil-free Booster |
5 m³/h @ liquid SF₆ |
Vacuum Pump |
64 m³/h, Ultimate Vacuum 0.1 mbar |
Vacuum Compressor |
31.3 m³/h, Ultimate Vacuum 1 mbar |
Purification Tank |
220 L, Design Pressure 50 bar, Stainless Steel |
Distillation Column |
Dual-tower, Stainless Steel |
Cooling Method |
Mechanical Refrigeration |
Cylinder Pre-treatment Unit |
Simultaneous processing of 12×40L cylinders, Heating Power 45 kW |
Gas Pre-treatment Unit |
Water-washing + Alkali-washing + Cold-drying process for toxic components in SF₆ fault gas |
Gas Buffer Tank |
1000 L, Design Pressure 50 bar, Carbon Steel |
Smart Cylinder Storage |
380×40L cylinders capacity, Automated access, Digital management |
Structure Type |
Enclosed Type |
Control Method |
15-inch Touch Screen & Remote Control |
Power Supply |
3-phase 5-wire, AC380V, 50Hz |
