▎Product Introduction ：

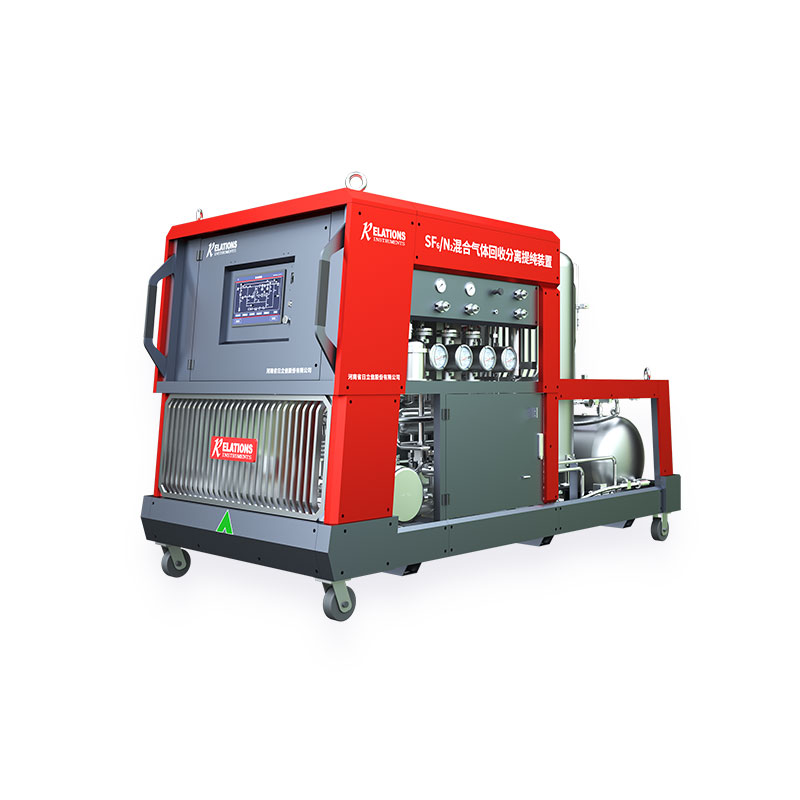

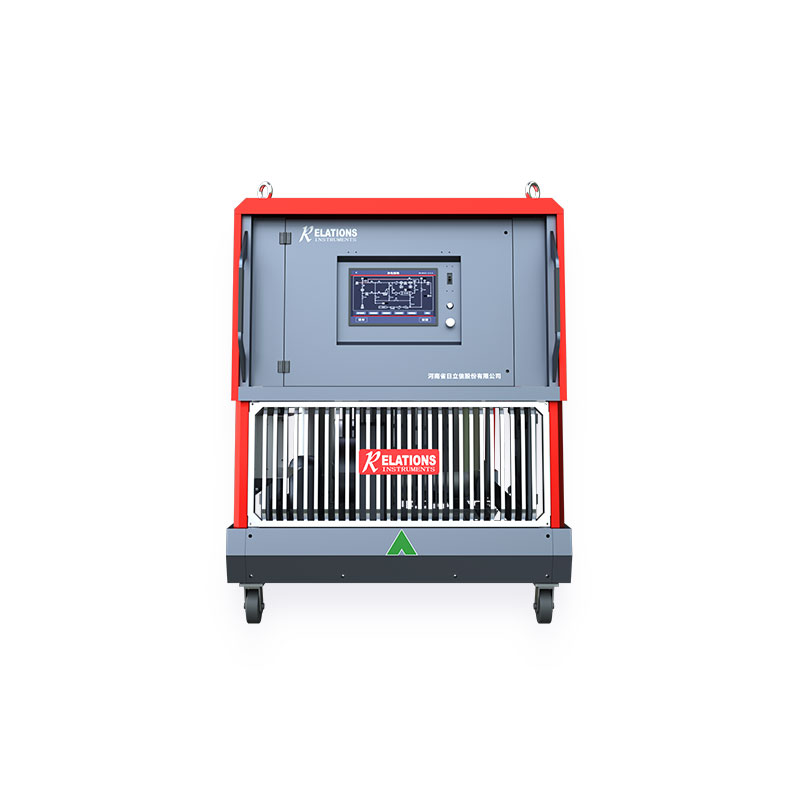

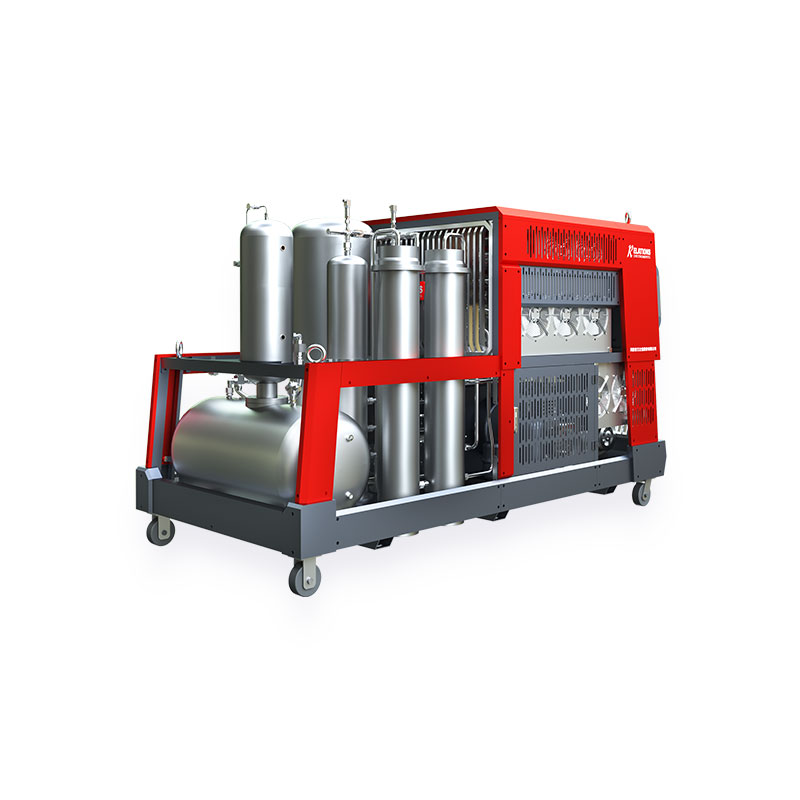

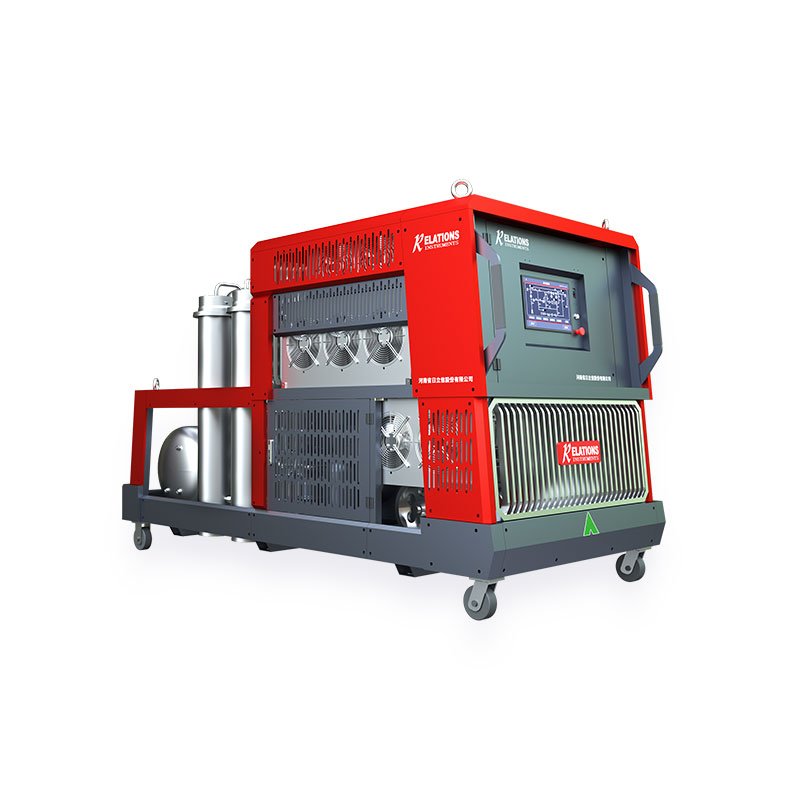

RF-151M Mixed Insulating Gas Recovery and Separation Unit is a device used for rapid recovery and separation of mixed insulating gases such as SF₆/N₂. The unit adopts a modular design, is easy to integrate, and has multiple module combinations to meet different field operation requirements. It is suitable for on-site recovery and separation operations of medium and low voltage switchgear (10~40.5)kV gas-filled cabinets, high voltage (72.5~220)kV porcelain column circuit breakers, 500kV porcelain column circuit breakers, and 110kV gas-insulated switchgear (GIS).
▎Key Features ：
1.Gas pretreatment function: Capable of filtering and adsorbing micro-water, toxic/harmful decomposition byproducts, and impurities in mixed gases.
2.Recovery and rapid separation of SF₆/N₂ mixed gas, with post-separation SF₆ volume content reaching ≥99%, and SF₆ content in N₂ less than 100ppm.
3.Compressed storage of separated SF₆ gas into external containers.
4.Equipped with pure SF₆ gas recovery capability, enabling multi-scenario operations with a single device.
▎Technical Specifications ：
Mixed Gas Separation Performance Parameters |
|
Parameter Name |
Parameter Value |
Gas separation speed (30% SF₆ mixture ratio) |
14Nm³/h, 30Nm³/h, 50Nm³/h (three options) |
Separated SF₆ concentration |
≥99% (30% SF₆ mixture ratio) |
SF₆ content in N₂ |
≤0.01% |
Filtration precision |
0.01μm |
SF₆ Gas Content Measuring Instrument (Built-in) |
|
Parameter Name |
Parameter Value |
Measurement range |
(90~100) % (mol/mol) |
Accuracy |
±0.5% (mol/mol) |
Resolution |
0.01% |
Response time |
＜20s |
System Specifications |
|
Parameter Name |
Parameter Value |
Controller & display |
Siemens S7-200, 15' integrated touch screen |
Vacuum pump |
16m³，ultimate vacuum 10pa |
Power |
25kW max |
Gas supply pressure |
(0.1~0.6) MPa |
