▎Product Introduction ：

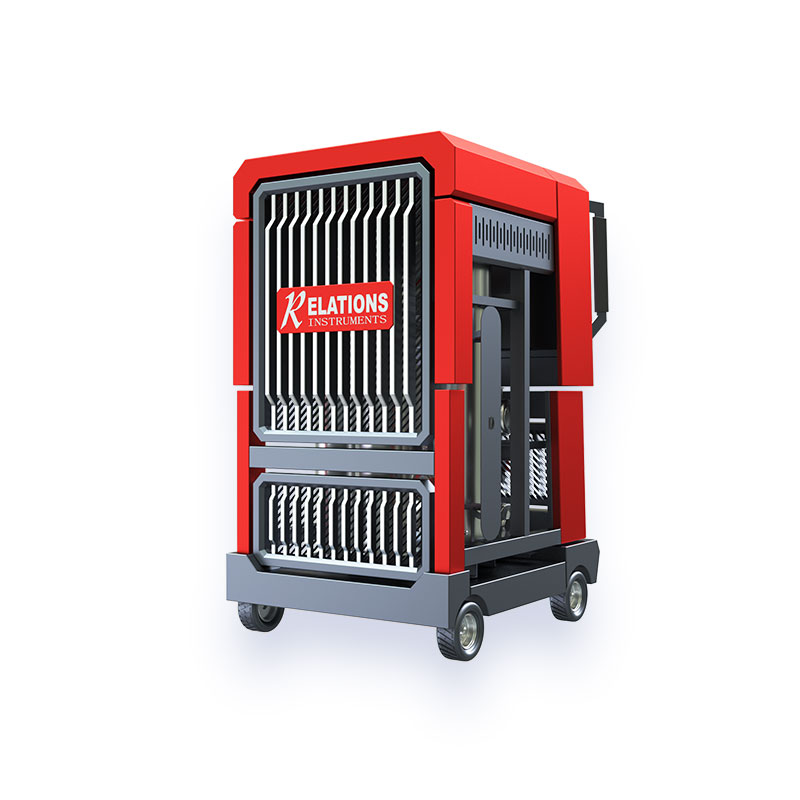

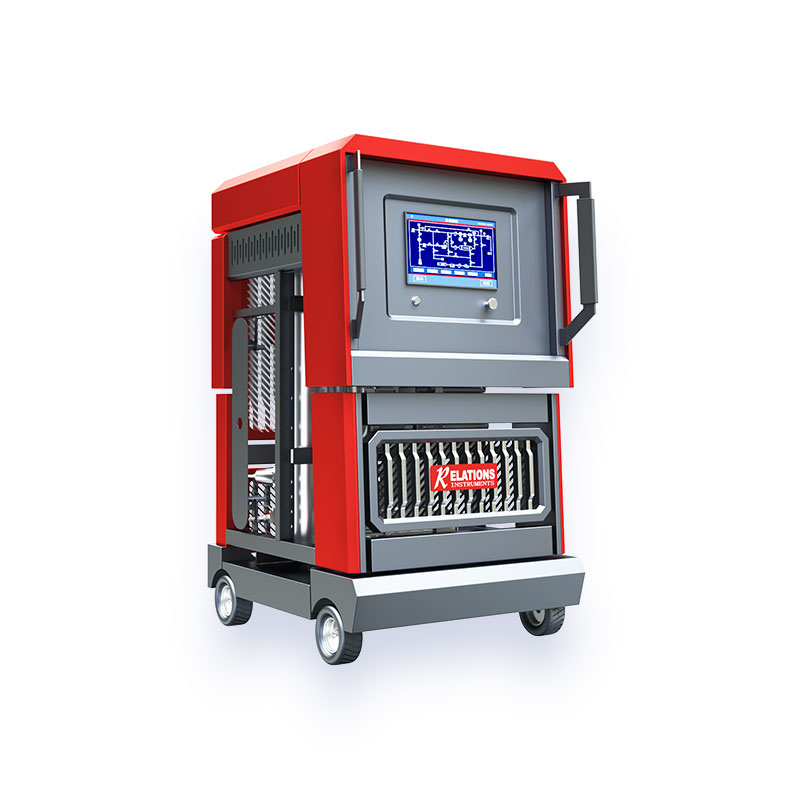

The RF-50H Live-line Gas Purification System employs a unique online treatment method for high-voltage equipment chambers, simultaneously removing moisture, decomposition byproducts and particulate matter while maintaining safe operation through continuous gas circulation, purification and real-time monitoring - this advanced treatment methodology has been incorporated into the T/CEC 424-2020 standard for on-site SF₆ equipment humidity control.
▎Key Features ：
1.Online gas drying/replacement without power interruption.
2.Proprietary purification technology for moisture/harmful substances/particulates.
3.SF₆ gas quality detection in high-voltage switchgear.
4.System/pipeline vacuum pumping and monitoring.
5.Dual real-time pressure monitoring/protection.
6.Automatic pressure-controlled gas exchange.
7.Compatible with single/dual-port switchgear with PLC touchscreen control.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Moisture Removal Efficiency |
1000ppm → 500ppm/50kg gas (24h) 1000ppm → 250ppm/10kg gas (24h) |
Particle Treatment |
≤1 μm |
Decomposition Product Treatment |
Adsorption |
Gas Replacement Pressure Fluctuation |
0.01 MPa |
Vacuum Pumping Speed |
17 m³/h |
Annual Leakage Rate |
<0.5% |
Ultimate Vacuum |
≤10 Pa |
Power Supply |
3-Phase 5-Wire, AC380V, 50Hz |
Weight |
900 kg |
Dimensions |
1400×950×1970 mm (L×W×H) |
