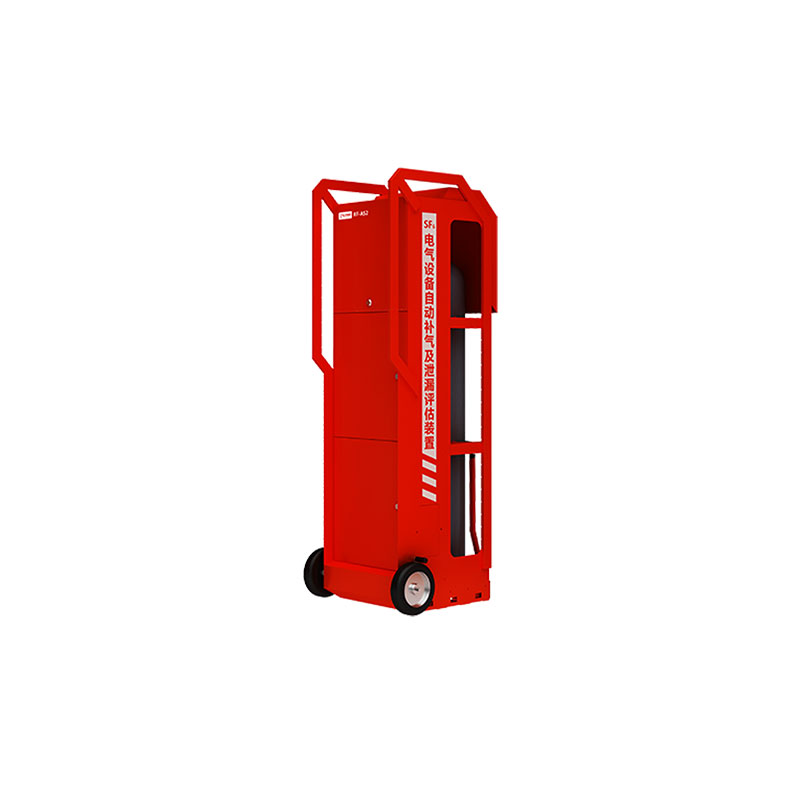

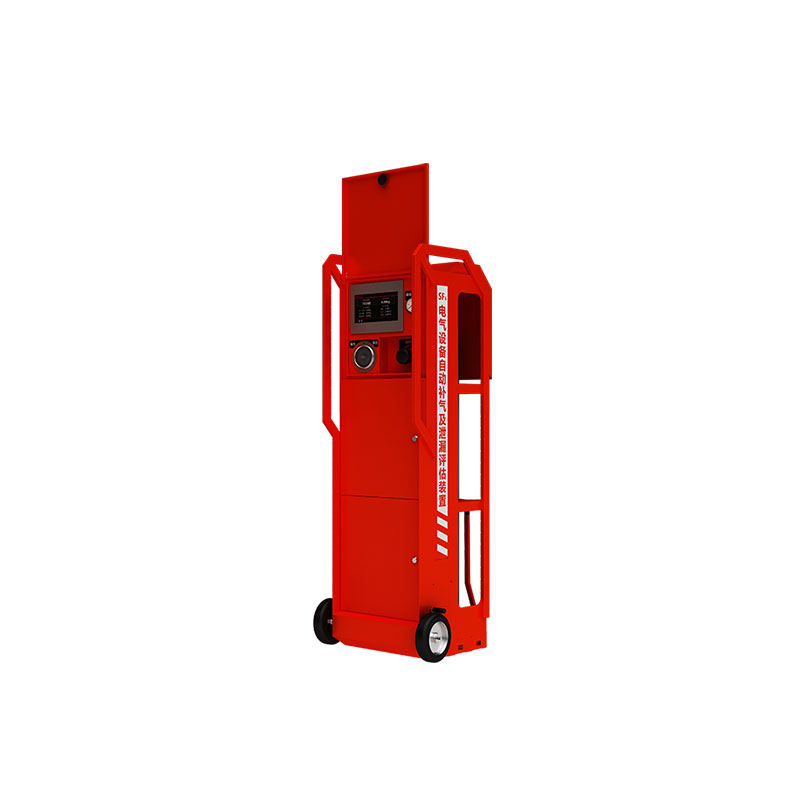

▎Product Introduction ：
Applicable for annual leakage assessment and live-line automatic refilling of 110kV+ GIS/GIL equipment.
▎Key Features ：
1.10-inch industrial touchscreen.
2.Automatic/manual refilling modes.
3.Adjustable output pressure.
4.High-precision weighing system (10g resolution).
5.Precision pressure-reducing valve for gaseous SF₆.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Output Pressure |
≤1 MPa |
Refill Speed |
(10~80) kg/h |
Pressure Error |
<0.02 MPa ±1% |
Weighing Range |
(0~20) kg |
Weighing Accuracy |
C5, 10g resolution |
Gas Cylinder |
40L @ 50kg SF₆ |
Refill Hose |
DN13×5m, One End: DN20 Self-sealing Connector Other End: T-connector with 3/8' Ball Valve |
Remote Data Transmission |
4G/5G |
Power Supply |
AC220V, 50Hz |
Weight |
65 kg |
Dimensions |
606×470×1700 mm (L×W×H) |
