▎Product Introduction ：

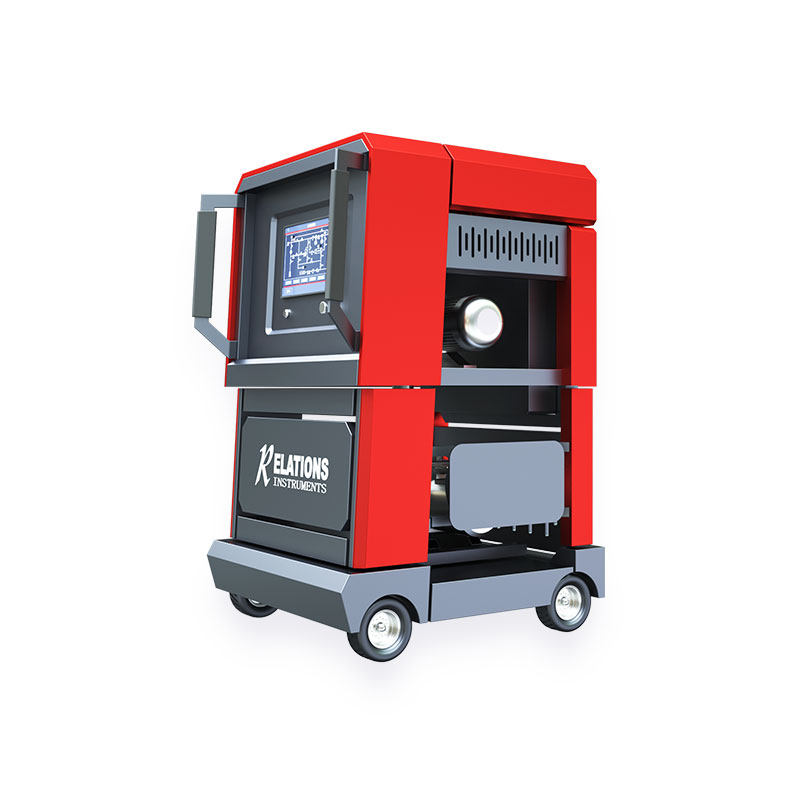

Applicable for vacuum pumping of 110kV and above GIS/GIL equipment.
▎Key Features ：
1.Vacuum pumping and vacuum testing.
2.Vacuum pump equipped with anti-backflow valve.
3.Tool tray and connection box.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
RF-CK-I Pumping Speed |
252 m³/h |
RF-CK-II Pumping Speed |
505 m³/h |
Ultimate Vacuum |
≤0.8 Pa |
Annual Leakage Rate |
<0.5% |
Connection Pipe |
DN19/DN32 |
Certification |
CE Certified |
Noise Level |
<75 dB(A) |
Power Supply |
3-Phase 5-Wire, AC380V, 50Hz |
Weight |
420 kg |
