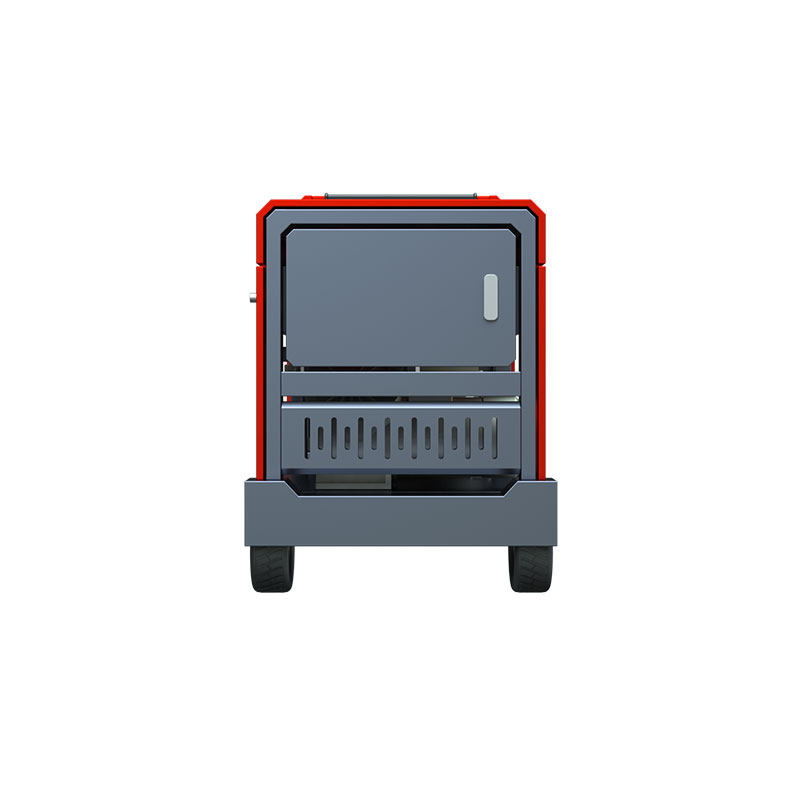

▎Product Introduction ：
Applicable for vacuum pumping of (10-110) kV SF₆ electrical equipment, 220kV porcelain circuit breakers, and 500kV porcelain circuit breakers.
▎Key Features ：
1.Vacuum pumping and SF₆ cylinder-to-chamber filling.
2.Built-in exhaust gas treatment.
3.Automatic vacuum pumping stop.
4.Anti-backflow valve with tool tray.
▎Technical Specifications ：
Model |
RF-S8 |
RF-S17 |
RF-S64 |
RF-S100 |
RF-S200 |
RF-S300 |
Dimensions (mm) |
750×530×610 |
750×530×610 |
950×650×1200 |
950×650×1200 |
1500×830×1200 |
1500×830×1200 |
Weight (kg) |
120 |
130 |
260 |
270 |
380 |
390 |
Pumping Speed (m³/h) |
8 |
17 |
64 |
100 |
200 |
300 |
Ultimate Vacuum |
10 Pa |
|||||
Certification |
CE |
|||||
Power Supply |
380VAC 50Hz |
|||||
