▎Product Introduction ：

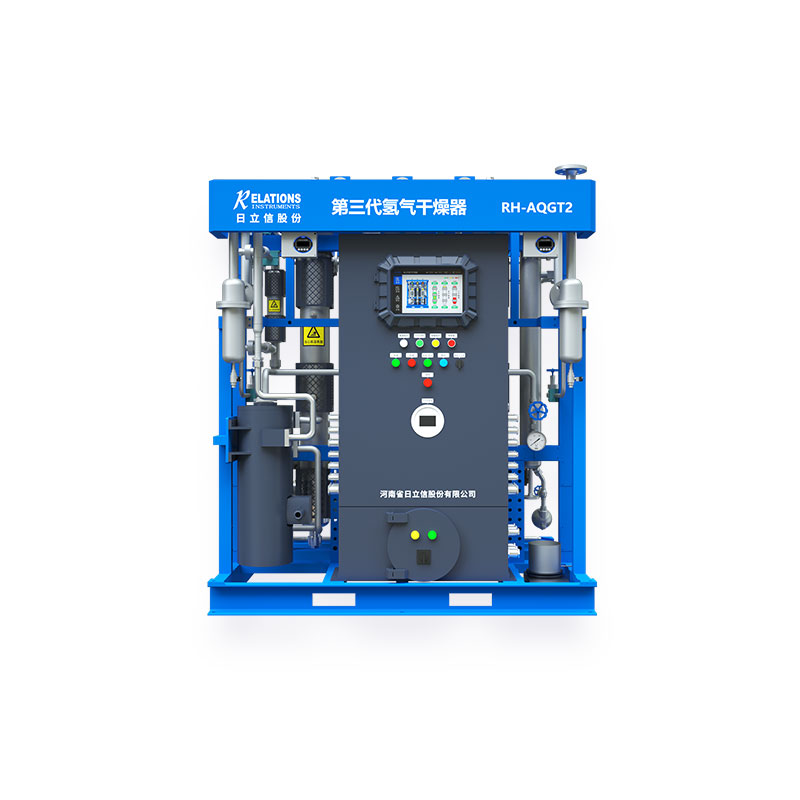

The third-generation hydrogen dryer is highly innovative, featuring a three-tower structural layout and intelligent control operation. Its adsorption capacity can be flexibly adjusted according to the humidity conditions of the generator. During normal operation, the three towers alternate between three states—'drying, standby, and regeneration'—to ensure continuous adsorption and regeneration. When humidity levels are excessively high, the standby drying tower can be activated immediately to meet the operational humidity requirements of the generator under varying conditions.This breakthrough design effectively resolves the challenges faced by previous generations, ensuring that the hydrogen humidity, purity, and trace oxygen levels in the generator's hydrogen system meet the requirements for high-efficiency operation. It provides robust support for the safe and efficient operation of hydrogen-cooled generators.
▎Key Features ：
1. H₂ Drying & Humidity Control: Intelligent humidity regulation within standard ranges.
2. H₂ Purification: Membrane separation technology achieves >99% purity, reducing windage loss.
3. Triple-Tower Adsorption: Continuous operation maintained with two towers if one fails.
4. Heater Configuration: Dual independent heaters per tower (primary/backup) with 10-year lifespan.
5. Smart Heating System: Star-pattern heating achieves 180°C for complete desiccant regeneration within 4 hours.
6. Status Indicators: Visual displays for 'Drying/Standby/Regeneration' states with color changes.
7. Multiple Control Modes: Cyclic control, emergency (boost mode), and humidity-triggered operation.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
H₂ Processing Capacity (NPT) |
100 m³/h |
Inlet/Outlet Dew Point |
(10/-30~-15) °C |
Cooling Water Inlet Outlet Pressure |
(200~1000) kPa |
Cooling Water Inlet Outlet Temperature |
≤38 °C |
Gas Dew Point Measurement Range |
(-40~+100) °C |
Signal Output |
(4~20) mA |
Inlet/Outlet Flange |
DN40 |
Float-type Drain Valve |
Automatic drainage |
Compressed Air Supply Pressure |
(0.5~0.8) MPa |
Explosion-proof Rating |
IIC T4 |
Power Supply |
380 VAC, 50 Hz |
Rated Power |
14 kW |
