▎Product Introduction ：

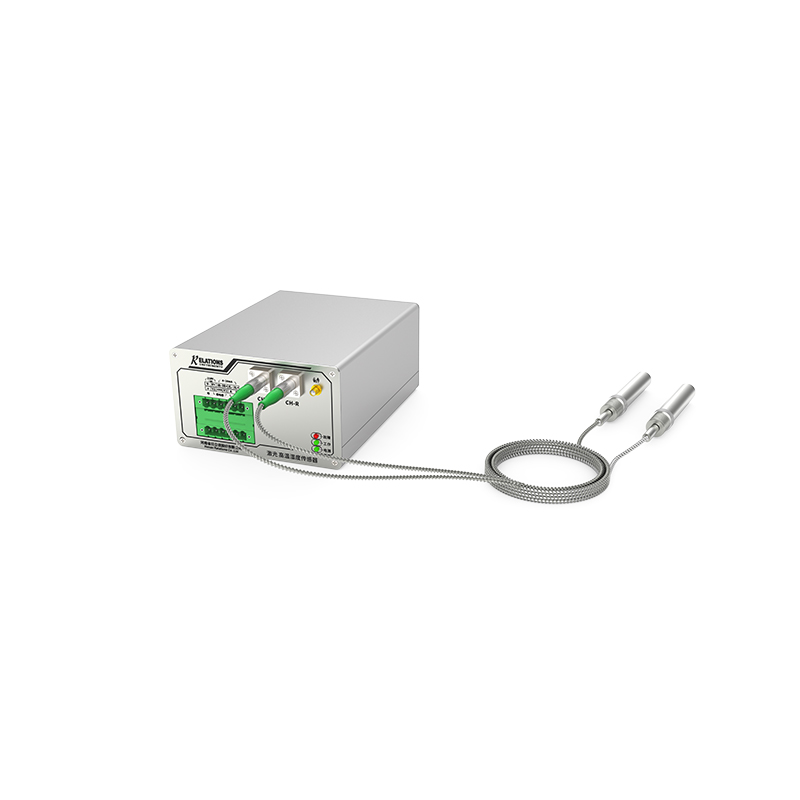

RLH-100 Series High-Temperature Humidity Transmitter is a humidity detection device transmitter developed and manufactured by our company, designed for harsh environments. The system is highly integrated with a built-in precision optical sensor. When the measured gas enters the sampling chamber of the sensor, the water vapor within absorbs laser light of a specific wavelength. The sensor amplifies and converts this change into a standard signal, which is then processed by a microprocessor and provided to users for data interaction via RS-485 digital signals and 4-20mA analog signals.
This transmitter is primarily used in industrial steam-related applications, high-temperature sterilization processes, constant-temperature chambers, and other high-temperature humidity environments.
▎Key Features ：
1.Capable of long-term operation within a working temperature range of (-20~+200)°C.
2.Resistant to corrosive measurement environments.
3.Strong anti-interference capability, avoiding gas cross-interference.
4.Long service life with excellent long-term stability.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Measurement Principle |
Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
Range |
(0~100) %RH |
Indication Error |
(0~90) %RH ,±2%RH; (90~100) %RH, ±3%RH |
Resolution |
0.1%RH |
Response Time (T₉₀) |
≤60s |
Warm-up Time |
＜2min (Preheating time) |

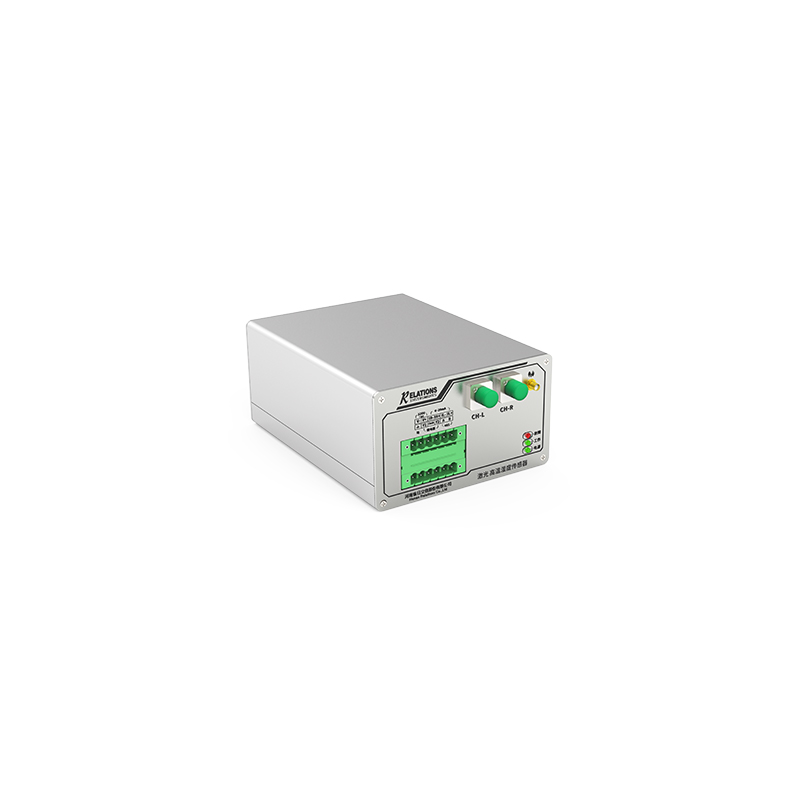

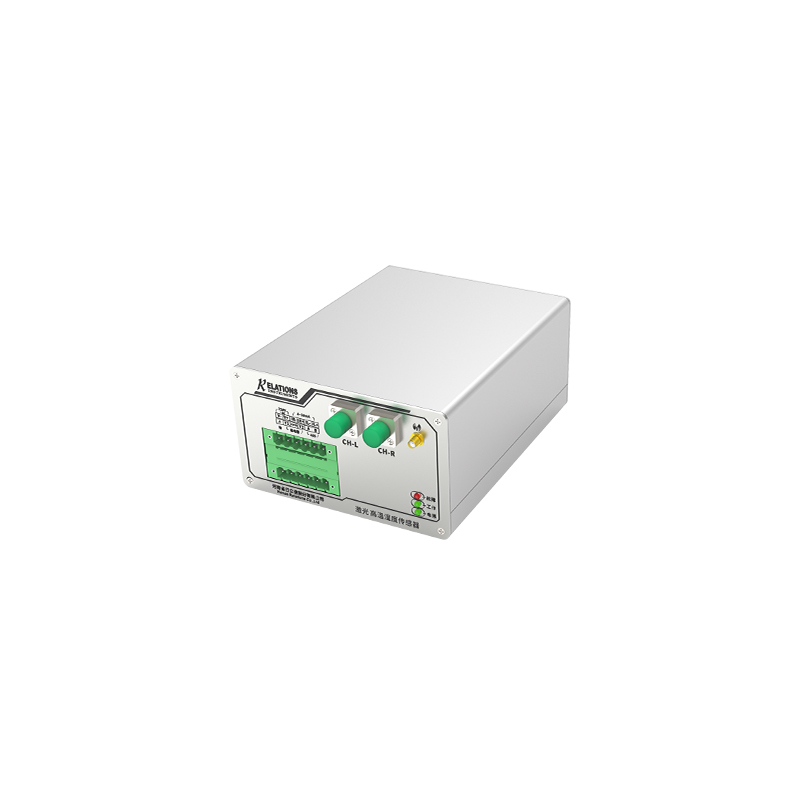

Main Unit Dimensions |
178mm×121mm×69mm (L×W×H) |

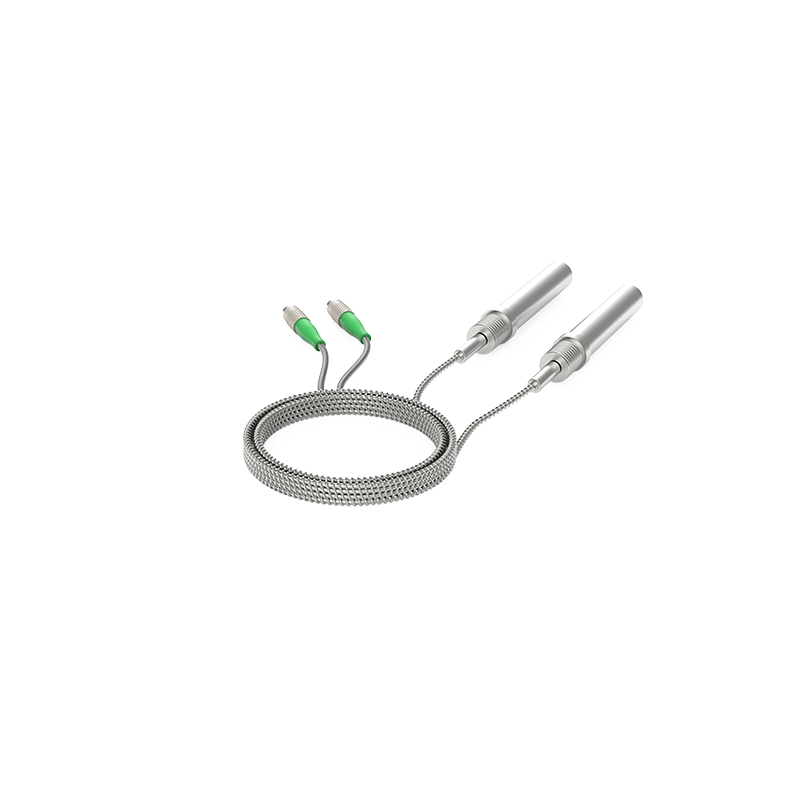

Probe Dimensions |
Φ8mm×80mm |
Gas Sampling Method |
Open sampling(Diffusion type) |
Operating Voltage |
(9~36) VDC |
Operating Current |
<0.8A@12VDC |
