▎Product Introduction ：

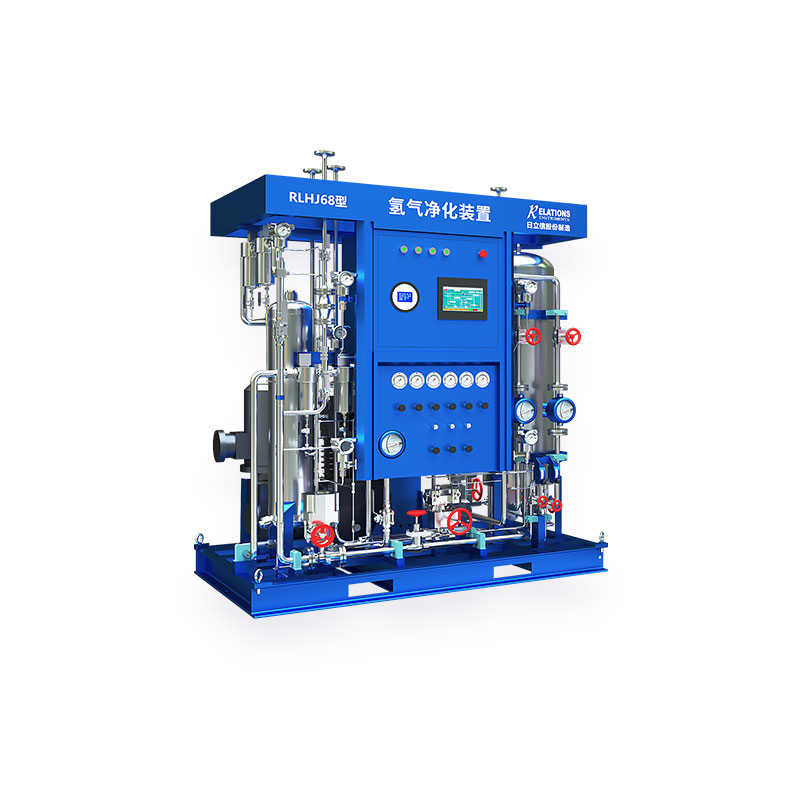

The RLHJ68 Hydrogen Purification Unit employs patented separation technology to remove impurity gases (O₂, N₂, CO₂) from H₂. Designed for hydrogen-cooled generators where conventional purging methods fail to maintain high purity levels, this unit achieves H₂ purity above 99%.
▎Key Features ：
1. High Efficiency: Utilizes high-separation-coefficient components to remove N₂, O₂, CO₂ impurities, achieving >99% H₂ purity.
2. Strong Stability: Gas separation components operate continuously via pressure differential with high reliability.
3. Long Service Life: Operational lifespan exceeds 10 years.
4. Compact Structure: Small footprint, lightweight, easy installation.
5. Precise Control: Automatically monitors H₂ purity for accurate purification control.
6. Dedicated Compressor: Zero-leakage magnetic-coupled H₂ compressor with unique cylinder treatment technology ensures 10-year lifespan and 5-year maintenance-free operation.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Feed Gas Flow Rate |
60 m³/h |
Inlet Gas Pressure |
(0.25~0.6) MPa |
Generator Purity Improvement |
≥99% |
Power Supply |
380 VAC |
Power Consumption |
9 kW |
Dimensions |
1870×1260×2165 mm (L×W×H) |
Weight |
1500 kg |
