▎Product Introduction ：

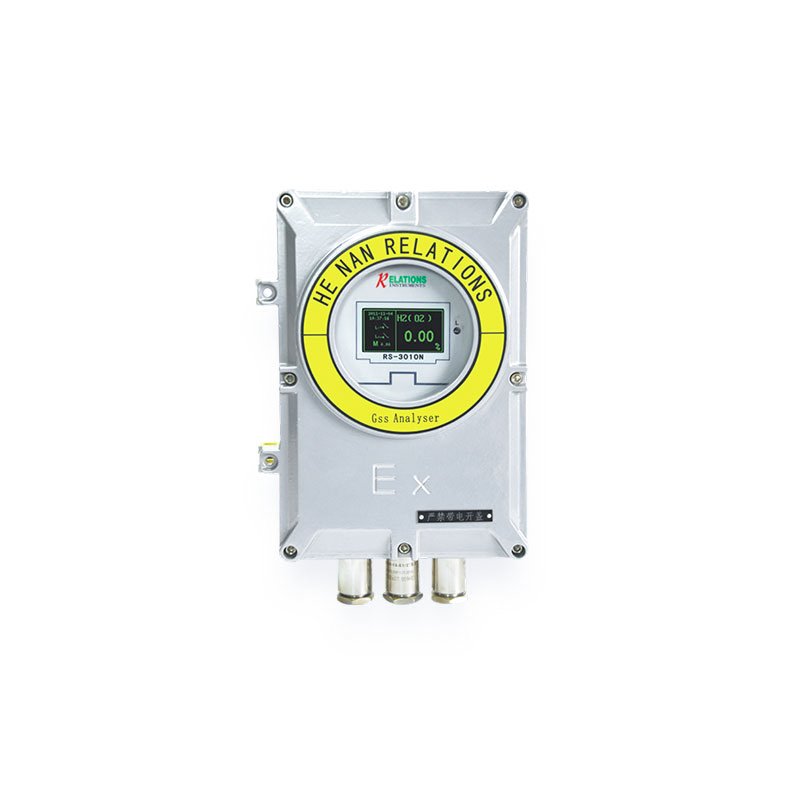

The RS-301ON is specifically designed for hydrogen-cooled generators, utilizing thermal conductivity principle with temperature-compensated detection cell for stable/accurate measurements. Its user-friendly interface ensures easy operation. The integrated H₂ sampling system effectively filters oil/water contaminants, protecting the transmitter for long-term reliable purity monitoring.
▎Key Features ：
1.Generator manufacturer-specified product.
2.Honeywell high-performance sensor technology.
3.Wide-range temperature compensation & explosion-proof sensor.
4.Precision sampling system for field calibration.
5.Proprietary auto-drain & safety bypass.
▎Technical Specifications ：
Parameter |
Value |
Measurement Range |
CO₂ in AIR: (0~100)%; CO₂ in H₂: (0~100)% H₂ in AIR: (90~100)% |
Accuracy |
±2% F.S |
Output Range |
(4~20) mA (factory default:90~100% H₂ in AIR), max load 800Ω |
Alarm Relay |
Contact current: 3A |
Sample Flow Rate |
0.5 SCFH |
Sampling Pressure |
≤ 0.1 MPa |
Input Voltage |
AC (90~265) V, 50Hz, 35W |
Explosion-proof Rating |
Ex d ⅡC T6 Gb |
Dimensions |
800×400×1660 mm (L×W×H) |
Weight |
130 kg |
