▎Product Introduction ：

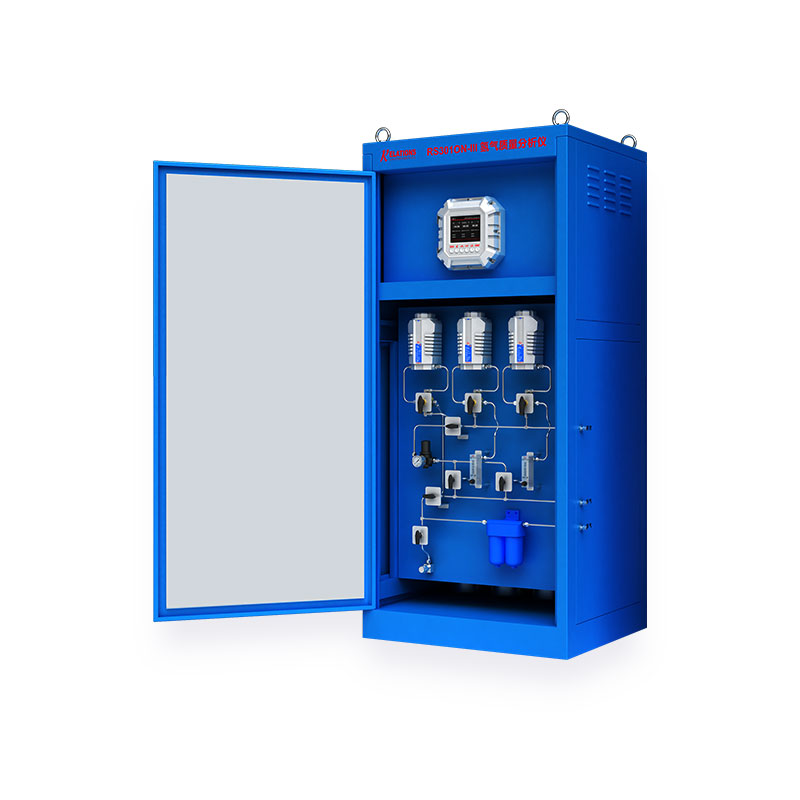

The RS301ON-III H₂ Quality Analyzer uses imported high-precision transmitters to monitor H₂ quality in generator cooling systems, integrating humidity/purity/O₂ monitoring with (4~20)mA output and alarm functions.
▎Key Features ：
1.Integrated explosion-proof electrical/sensor design.
2.Explosion-proof operation buttons.
3.Oil filtration prevents sensor contamination.
4.Dual H₂ purity monitoring for reliability.
5.H₂ residue monitoring for maintenance safety.
6.Flexible explosion-proof unit installation.
7.In-pressure measurement reduces H₂ waste.
▎Technical Specifications ：
Purity |
|
Principle |
Micro thermal conductivity |
Range |
H₂/Air: (90~100)%; CO₂/H₂: (0~100)%; CO₂/Air: (0~100)% |
Max. Error |
±2% F.S |
Explosion-proof Rating |
Ex d IIB +H₂ T5 Gb |
Humidity (Td) |
|
Principle |
Capacitive |
Range |
(-80~20)°C |
Max. Error |
±2°C |
Explosion-proof Rating |
Ex d IIB +H₂ T5 Gb |
Oxygen (O₂) |
|
Principle |
Electrochemical |
Range |
(0~25)% |
Max. Error |
±1% F.S |
Explosion-proof Rating |
Ex d IIB +H₂ T5 Gb |
H₂ Residual |
|
Principle |
Catalytic combustion |
Range |
(0~4)% Vol |
Max. Error |
±1% F.S |
Explosion-proof Rating |
Ex d IIC T6 Gb |
