▎Product Introduction ：
The SF₆ Gas Leakage Online Monitoring System transmits real-time measurements of SF₆, O₂, temperature and humidity to DCS via RS-485 bus. When readings exceed preset thresholds, the system activates audible/visual alarms or exhaust equipment, while its PIR human detection automatically starts ventilation for preset durations before permitting safe worker entry - ensuring complete production safety. This system is widely applicable across power, metallurgical and petrochemical industries for all SF₆-insulated equipment including GIS switches, transformers and busbars.
▎Key Features ：
1.Long-life imported SF₆ infrared sensor.
2.Environmental temperature/humidity/O₂ monitoring.
3.Optional PIR detector/voice alerts/alarm lights/fan control.
4.RS-485 connectivity for 64 monitoring points.
5.RS-485 data transmission.
▎Technical Specifications ：

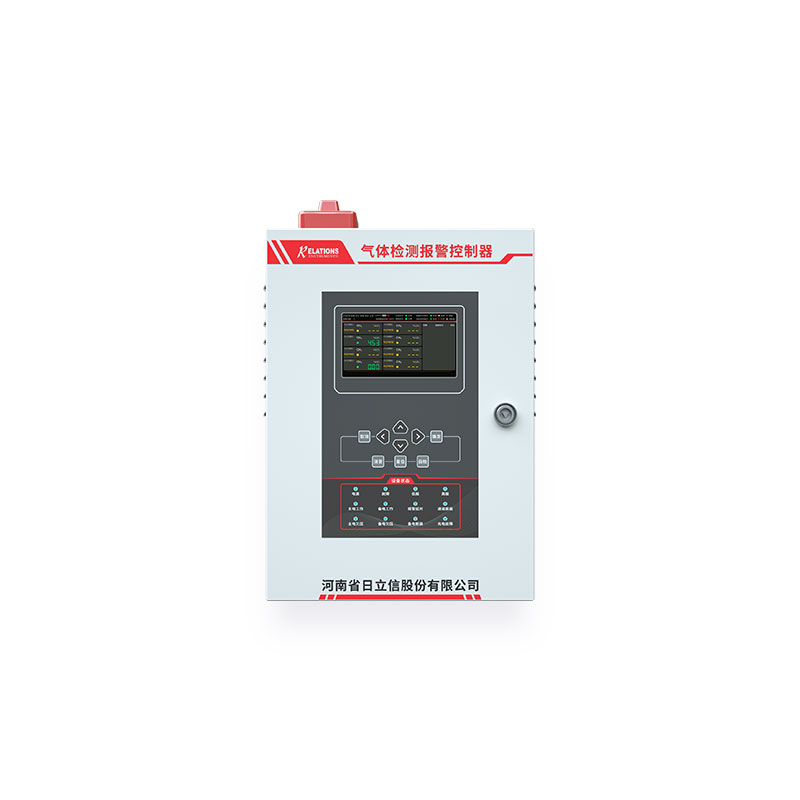

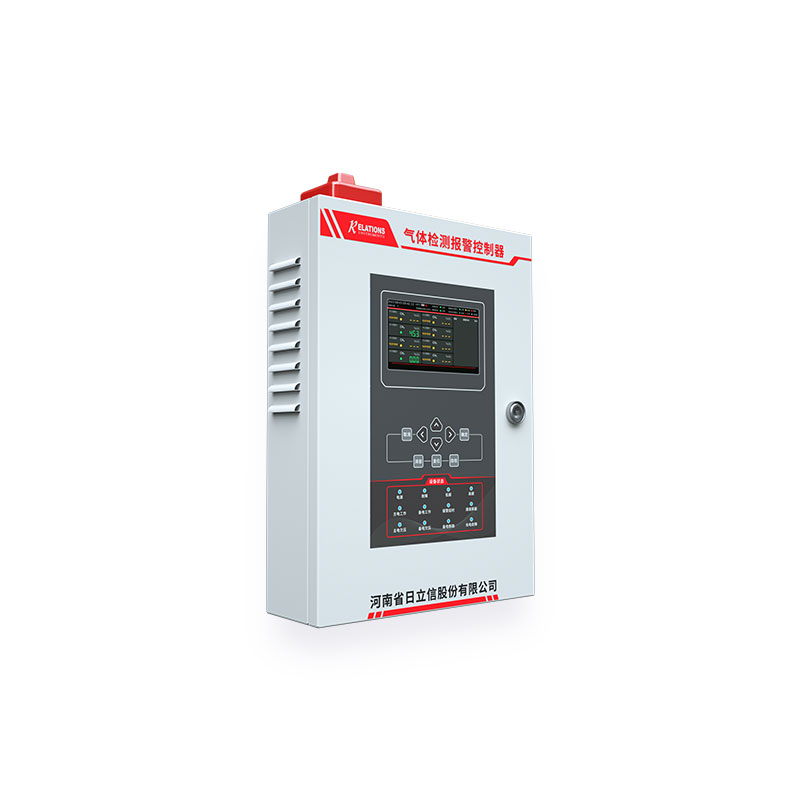

NA1000MR Multi-channel Alarm Controller |
|
Display |
TFT256 color |
Interface |
RS-485 bus |
Transmission Distance |
≤1000 m |
Connection Method |
RVVP 4×0.75 mm² shielded cable (bus type) |
Input Capacity |
(1~64) channels of smart transmitters |
Operating Voltage |
(85~265) VAC, 50/60 Hz |
Ambient Temperature |
(-30~60) °C |
Ambient Humidity |
(0~95) % RH (non-condensing) |
Mounting Method |
Wall-mounted |
Dimensions |
440×330×140 mm (L×W×H) |
Weight |
10 kg |
NA1000FDⅡ Gas Detection Alarm |
|
SF₆ Gas Measurement |
|
Measurement Range |
(0~1500) ppm |
Maximum Permissible Error |
±30 ppm or ±5% of reading |
Repeatability |
≤3% |
Span & Zero Drift |
±3%F.S |
Response Time |
＜60 |
O₂ Measurement |
|
Measurement Range |
(0~25) % |
Maximum Permissible Error |
±0.5%(vol) |
Repeatability |
≤1% |
Span & Zero Drift |
±1%F.S |
Response Time |
＜60s |
Temperature Measurement |
|
Measurement Range |
(-40~100) ℃ |
Maximum Permissible Error |
±2℃ |
Humidity Measurement |
|
Measurement Range |
(0~99) %RH |
Maximum Permissible Error |
±5%RH |
