▎Product Introduction ：

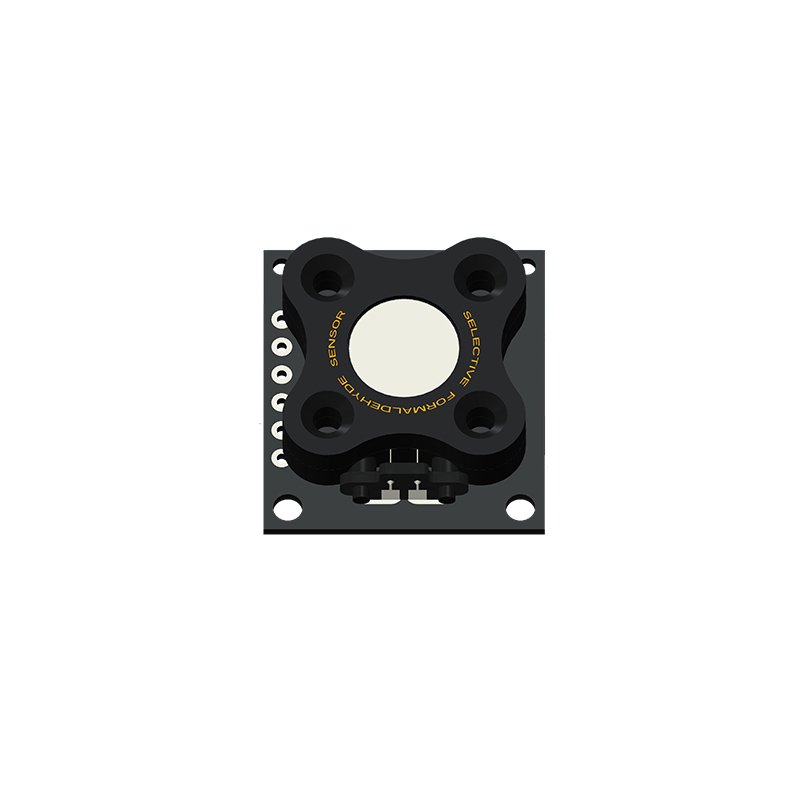

The WZ-S Formaldehyde Detection Module is the latest innovation jointly developed by our company and the global formaldehyde detection expert Dart from the UK. It directly converts ambient formaldehyde levels into concentration values with standardized digital output for easy customer integration. The WZ-S module undergoes rigorous factory calibration and can be directly applied to detection systems.
▎Key Features ：
1.High measurement accuracy with excellent stability and reliability.
2.Fast response speed.
3.Strong anti-interference capability.
4.No regular calibration required.
5.Long service life.
6.Low power consumption.
▎Technical Specifications ：
Parameter Name |
Parameter Value |
Target Gas |
Formaldehyde |
Detection Principle |
Fuel cell |
Range |
(0~2) μL/L |
Maximum Overload |
10μL/L |
Supply Voltage |
(4.5~7) VDC |
Response Time (T₉₀) |
<40s |
Recovery Time (T₁₀) |
<60s |
Resolution |
0.01μL/L |
Operating Temperature |
(-20~50)℃ |
Operating Humidity |
(10~90) ％RH (non-condensing) |
Storage Temperature |
(0~20)℃ |
Service Life |
5 years (under normal use) |
Weight |
4g |
